Driver's Under-dash Fuse/Relay Box
Driver's Under-dash Fuse/Relay Box

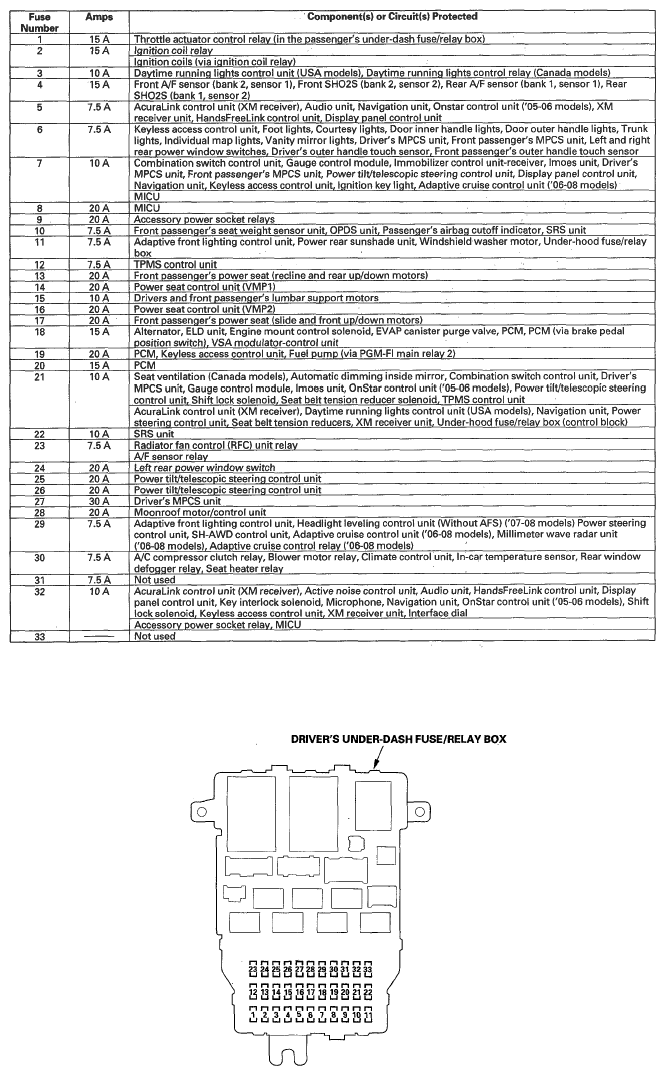

Fig 1: Identifying Driver's Under-Dash Fuse/Relay Box
