Component Location Index

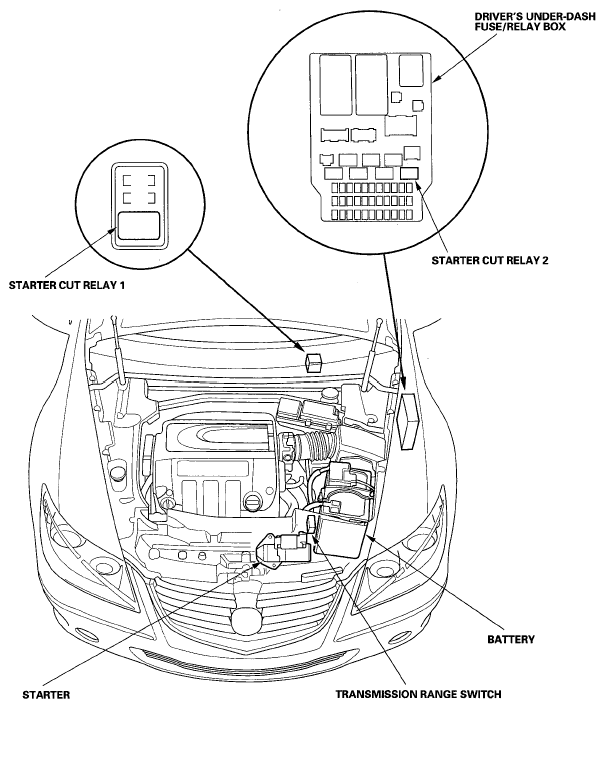

Fig 1: Identifying Starting System Components Location
G05493782Courtesy of AMERICAN HONDA MOTOR CO., INC.
