RFC Unit Replacement

Remove the right upper fender trim (A), battery trim (B), left upper fender trim (C), then remove the upper grille cover (D).

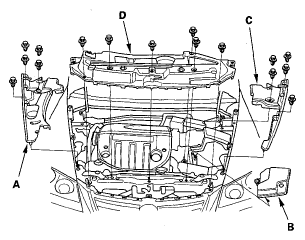

Fig 1: Identifying Right/Left Upper Fender Trim, Battery Trim And Upper Grille Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the connectors from the radiator fan control (RFC) unit, then remove the RFC unit.

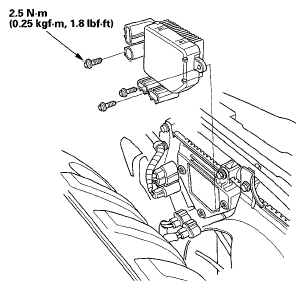

Fig 2: Radiator Fan Control Unit With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the RFC unit in the reverse order of removal.
