Air Cleaner Element Inspection/Replacement

  1. Remove the lid (A).

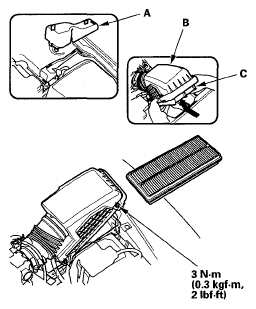

    Fig 1: Lid With Torque Specifications
    G05495304Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Open the air cleaner housing cover (B).
  3. Remove the air cleaner element (C) from the air cleaner housing cover.
  4. Check the air cleaner element for damage or clogging. If it is damage or clogging, replace it.
    NOTE: Do not use compressed air to clean the air cleaner element.
  5. Clean and remove any debris from inside the air cleaner housing.
  6. Install the parts in the reverse order of removal.
  7. If the maintenance minder requires air cleaner replacement, reset the maintenance minder (see MAINTENANCE MINDER ).
