Home › Acura › 2007 › RL › Repair and Diagnosis › Engine Performance › System › Advanced Diagnostics › DTC P2552: Throttle Actuator Control Module Relay Malfunction › Notes

DTC P2552: Throttle Actuator Control Module Relay Malfunction: Notes

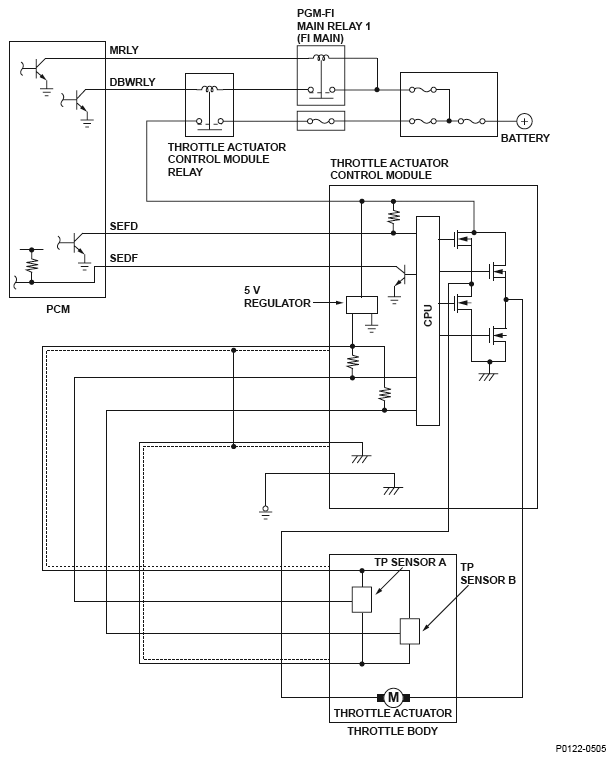

Fig 1: Throttle Actuator Control Module Relay Circuit Diagram
G04822847
