Interior Light Switch Test/Replacement

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

Carefully pry off the lens with a small screwdriver (see FRONT INDIVIDUAL MAP LIGHT REPLACEMENT ).
Pull down the roof console (A) holding the center part of the roof console.

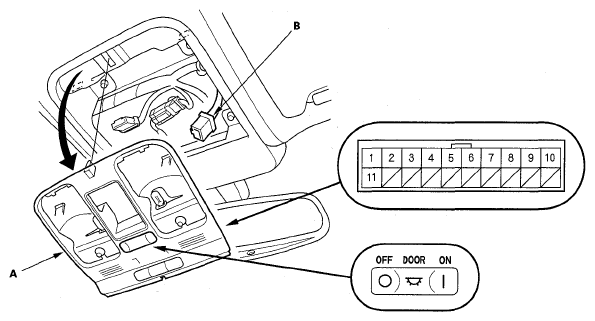

Fig 1: Identifying Roof Console And 20P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the moonroof switch (see MOONROOF SWITCH TEST/REPLACEMENT ).
Disconnect the 20P connector (B) from the roof console.
Check for continuity between the terminals in each interior light switch position according to the table.
NOTE:
- Before testing, check the front individual map light bulb(s).
- When check for continuity across the diode, use the diode setting ( ) on the digital volt/ohm meter to check the diode bias.

  Fig 2: Terminals Continuity Chart
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the roof console as an assembly.
