Trunk Light Test/Replacement

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

Open the trunk lid.
Carefully pry out the trunk light (A).
Trunk Light: 5 W

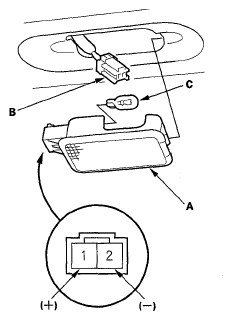

Fig 1: Identifying Trunk Light And 2P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 2P connector (B) from the light.
Check for continuity between the No. 1 (+) and No. 2 (-) terminals. There should be continuity. If there is no continuity, check the bulb (C). If the bulb is OK, replace the trunk light.
