Component Location Index

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

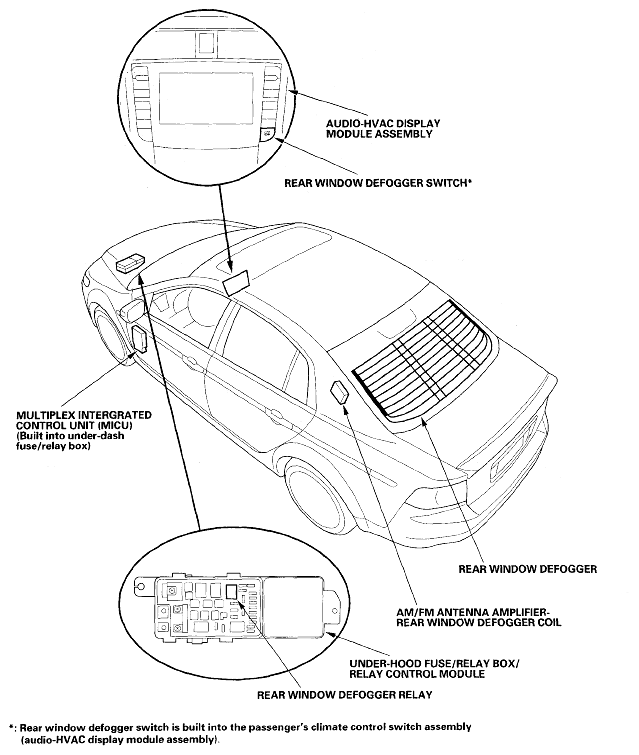

Fig 1: Identifying Rear Window Defogger Component Location (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Identifying Rear Window Defogger Component Location (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
