Blower Power Transistor Connector End View
Blower Power Transistor Connector End View

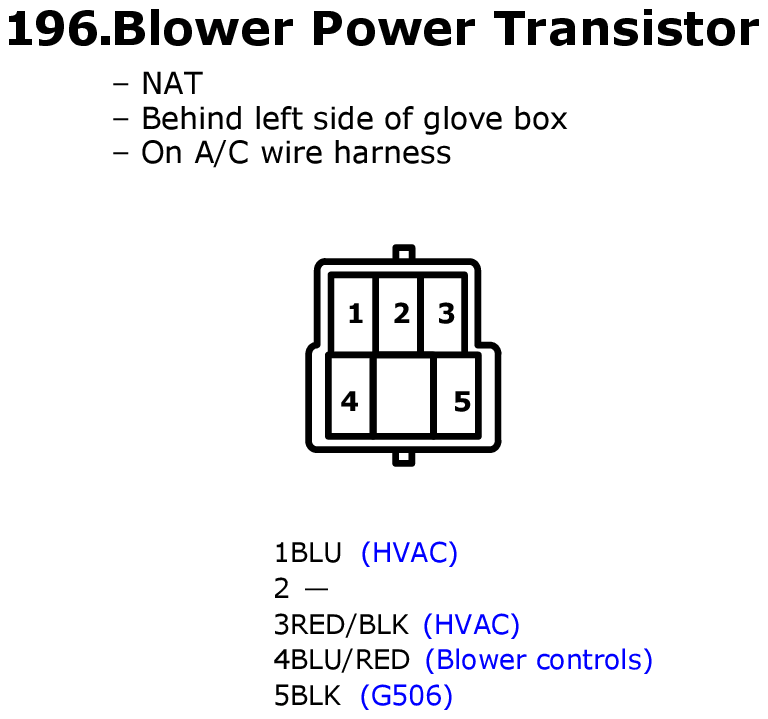

Fig 1: Blower Power Transistor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

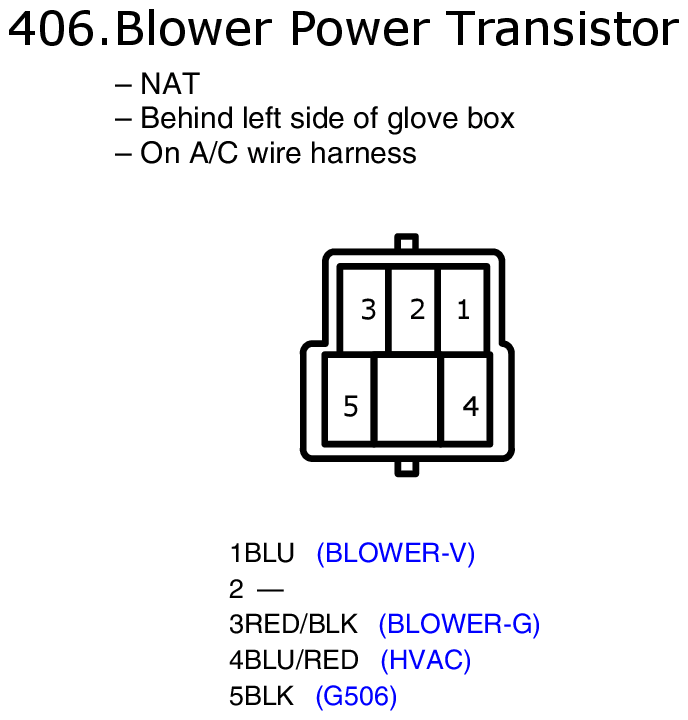

Fig 1: Blower Power Transistor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
