DRL Relay and Fan Control Relay Connector End View
DRL Relay and Fan Control Relay Connector End View

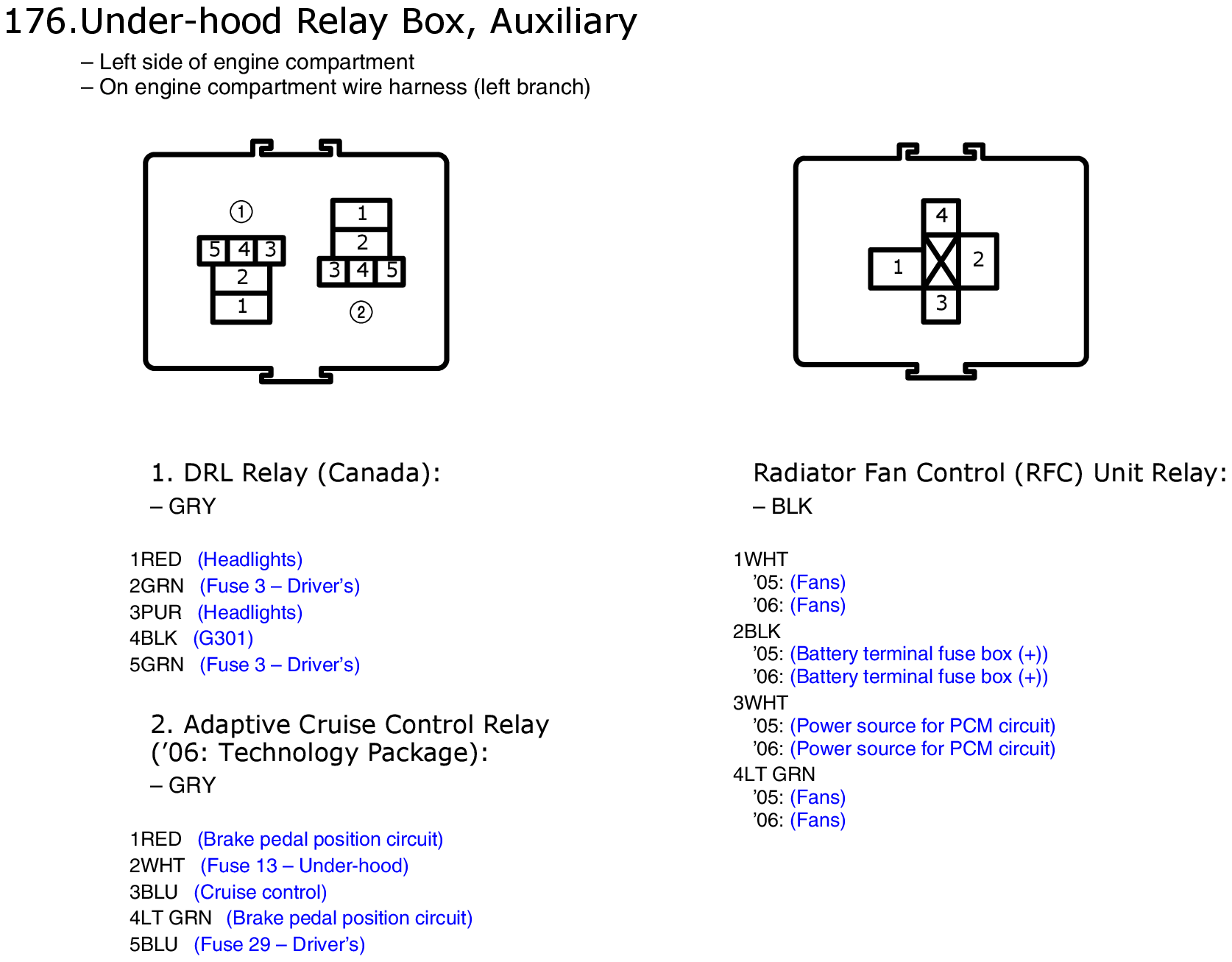

Fig 1: DRL Relay and Fan Control Relay Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
