Dash Lights Brightness Controller Connector End View

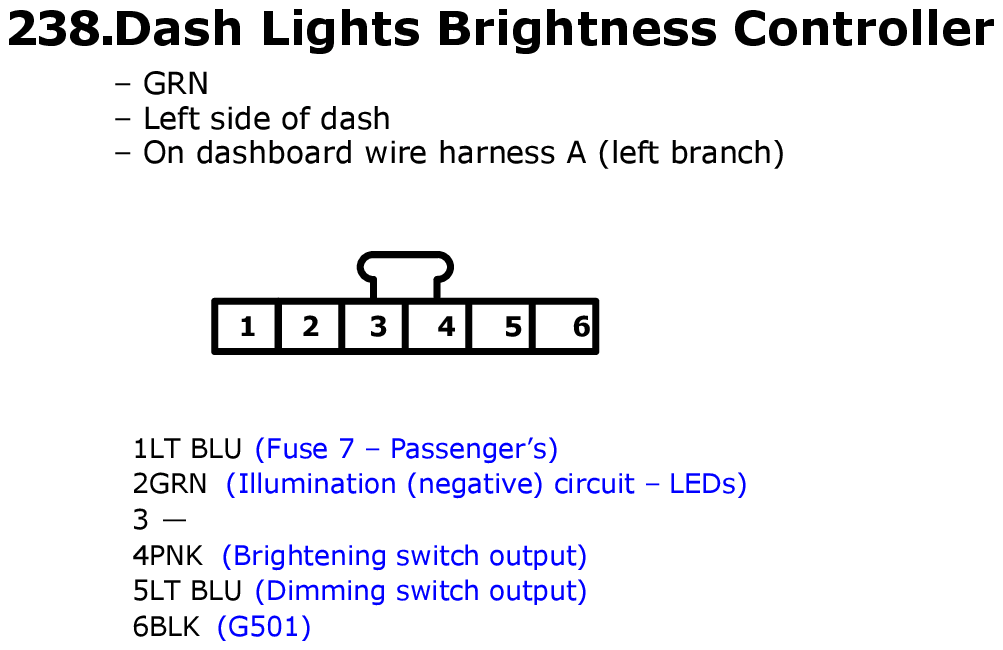

Fig 1: Dash Lights Brightness Controller Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

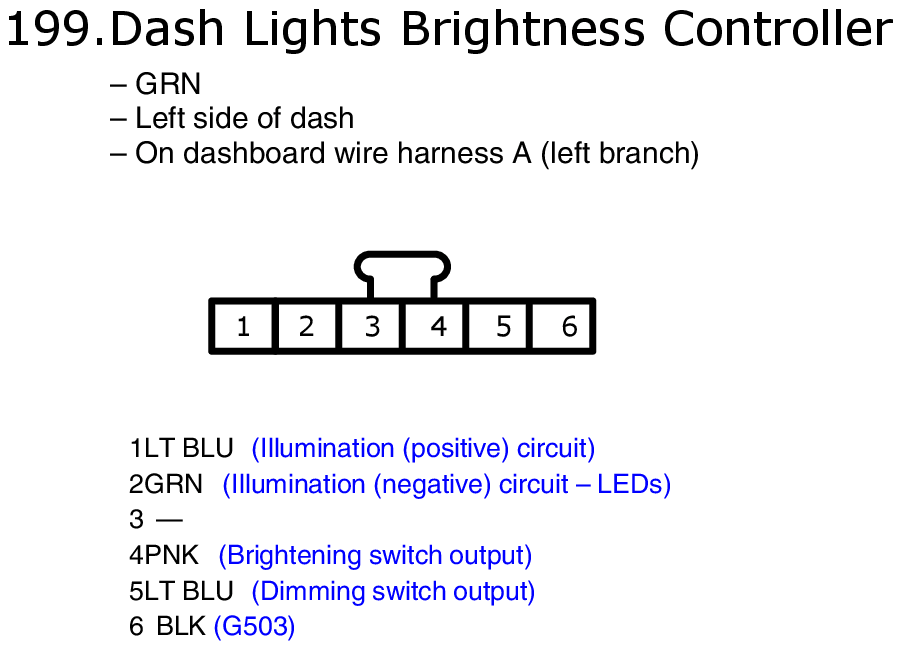

Fig 1: Dash Lights Brightness Controller Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.
