Front Center Speaker Connector End View
Front Center Speaker Connector End View

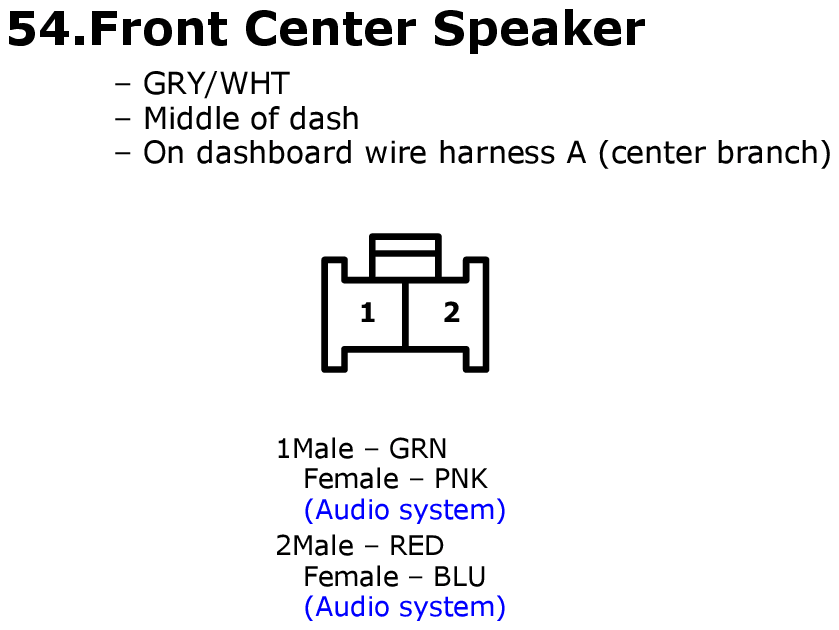

Fig 1: Front Center Speaker Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

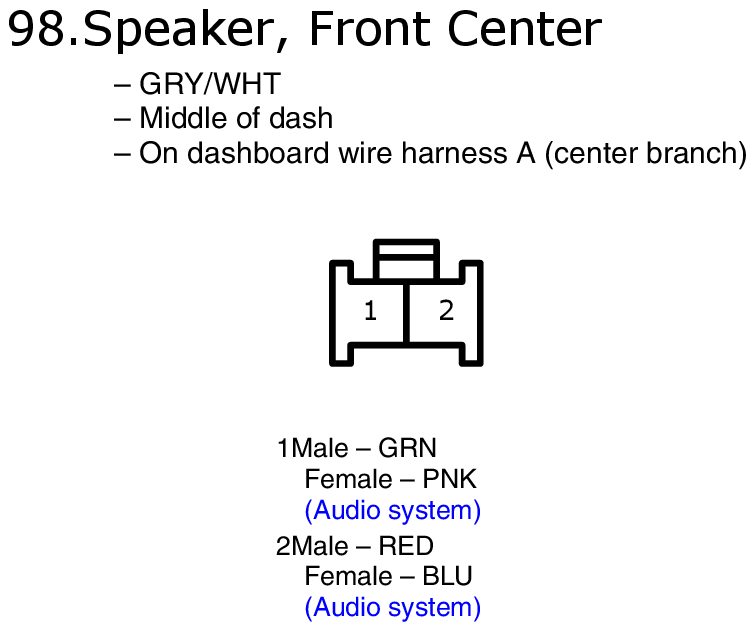

Fig 1: Front Center Speaker Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
