HFL Switch Connector End View
HFL Switch Connector End View

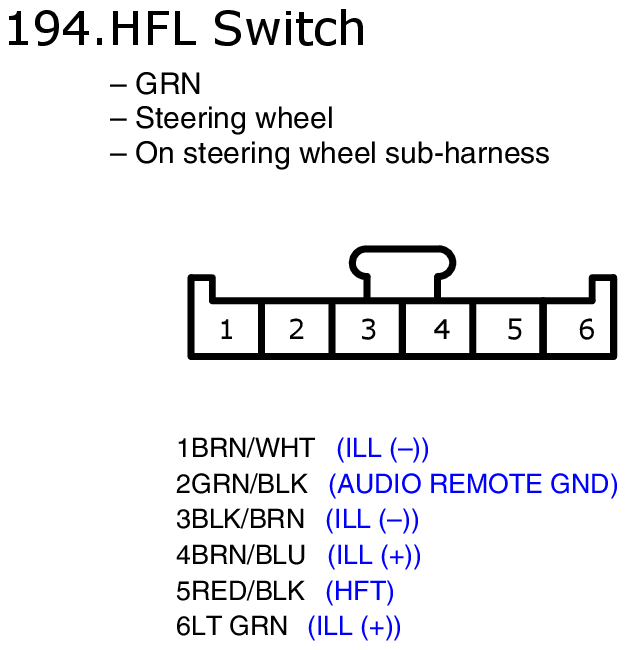

Fig 1: HFL Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

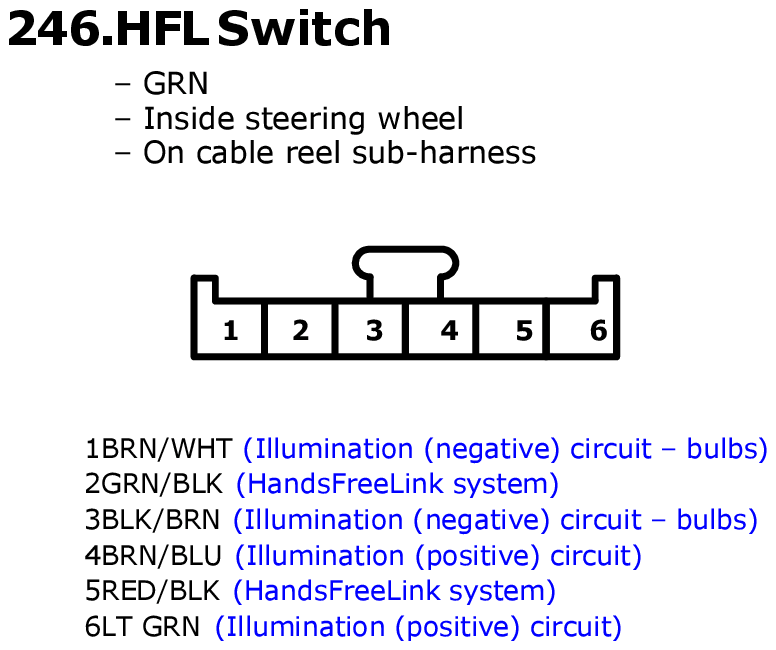

Fig 1: HFL Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
