Headlight Washer Switch Connector End View
Headlight Washer Switch Connector End View

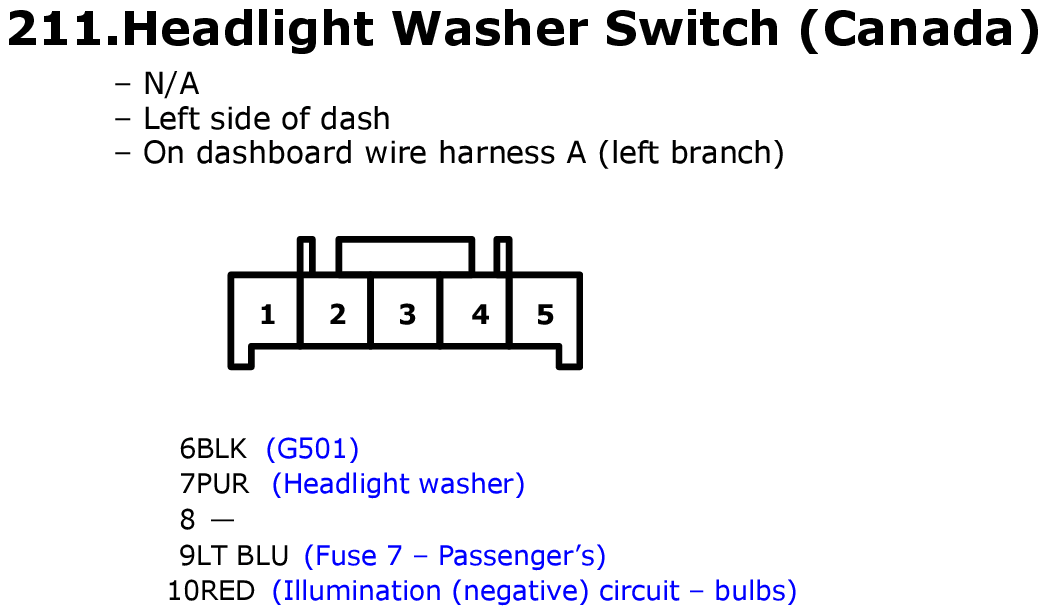

Fig 1: Headlight Washer Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
