Right Front Wheel Speed Sensor Connector End View
Right Front Wheel Speed Sensor Connector End View

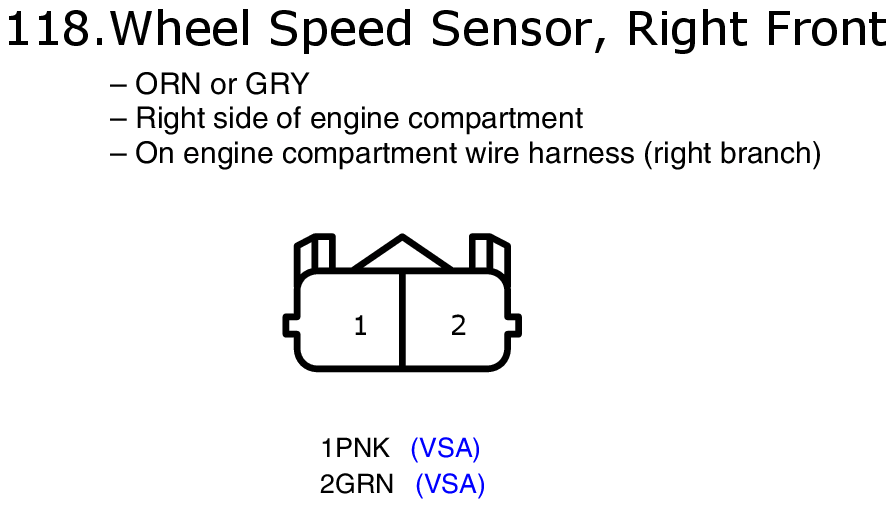

Fig 1: Right Front Wheel Speed Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

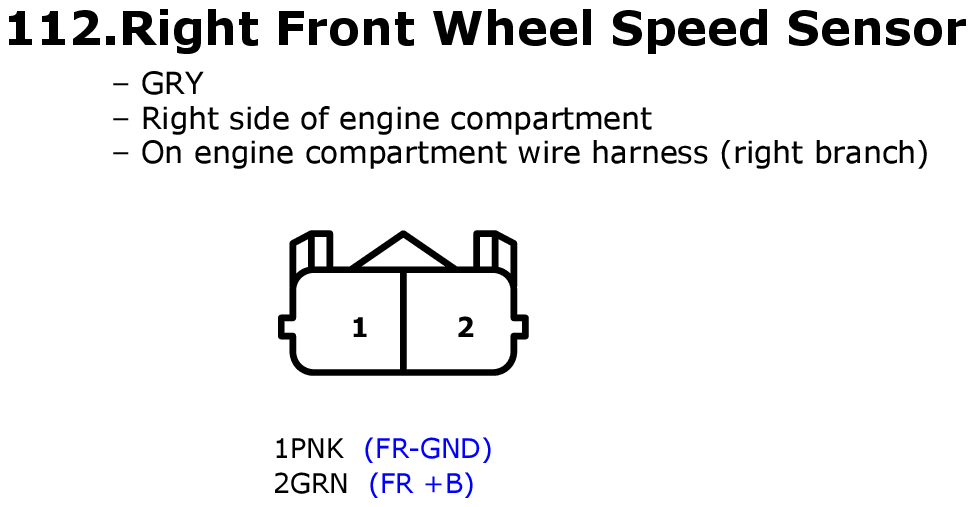

Fig 1: Right Front Wheel Speed Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
