SRS Unit Connector End View
SRS Unit Connector End View

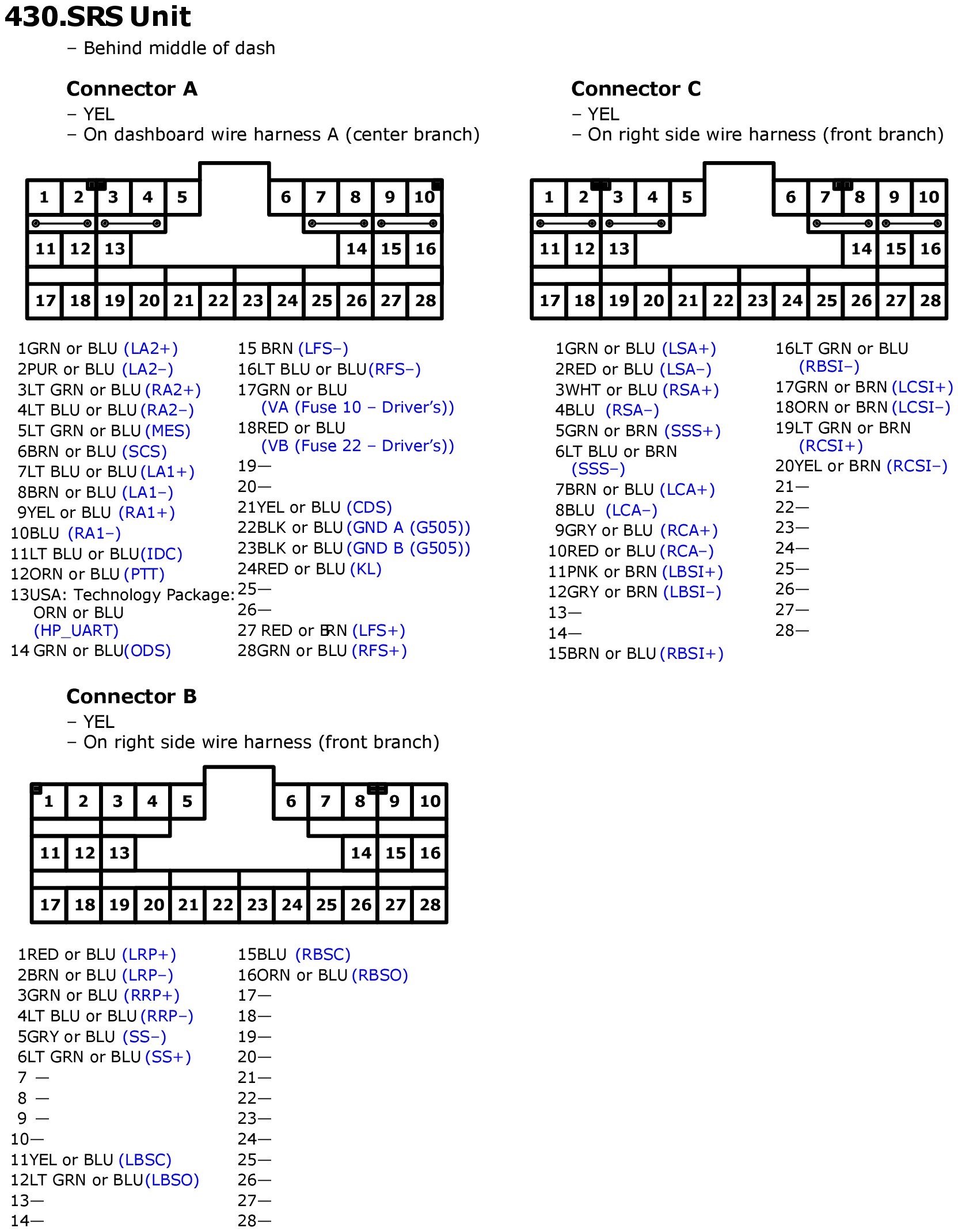

Fig 1: SRS Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

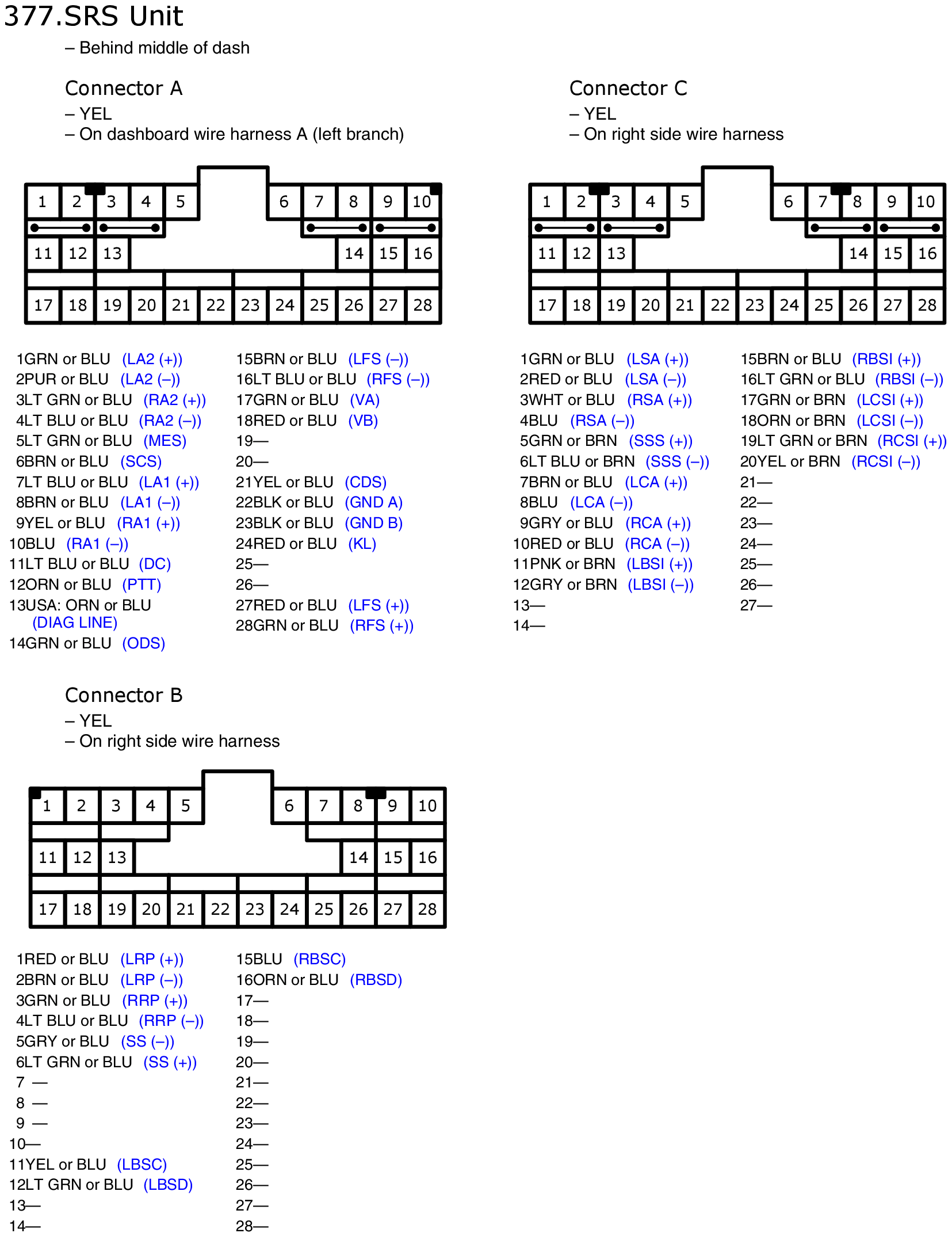

Fig 1: SRS Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
