Wiper/Washer Switch Connector End View
Wiper/Washer Switch Connector End View

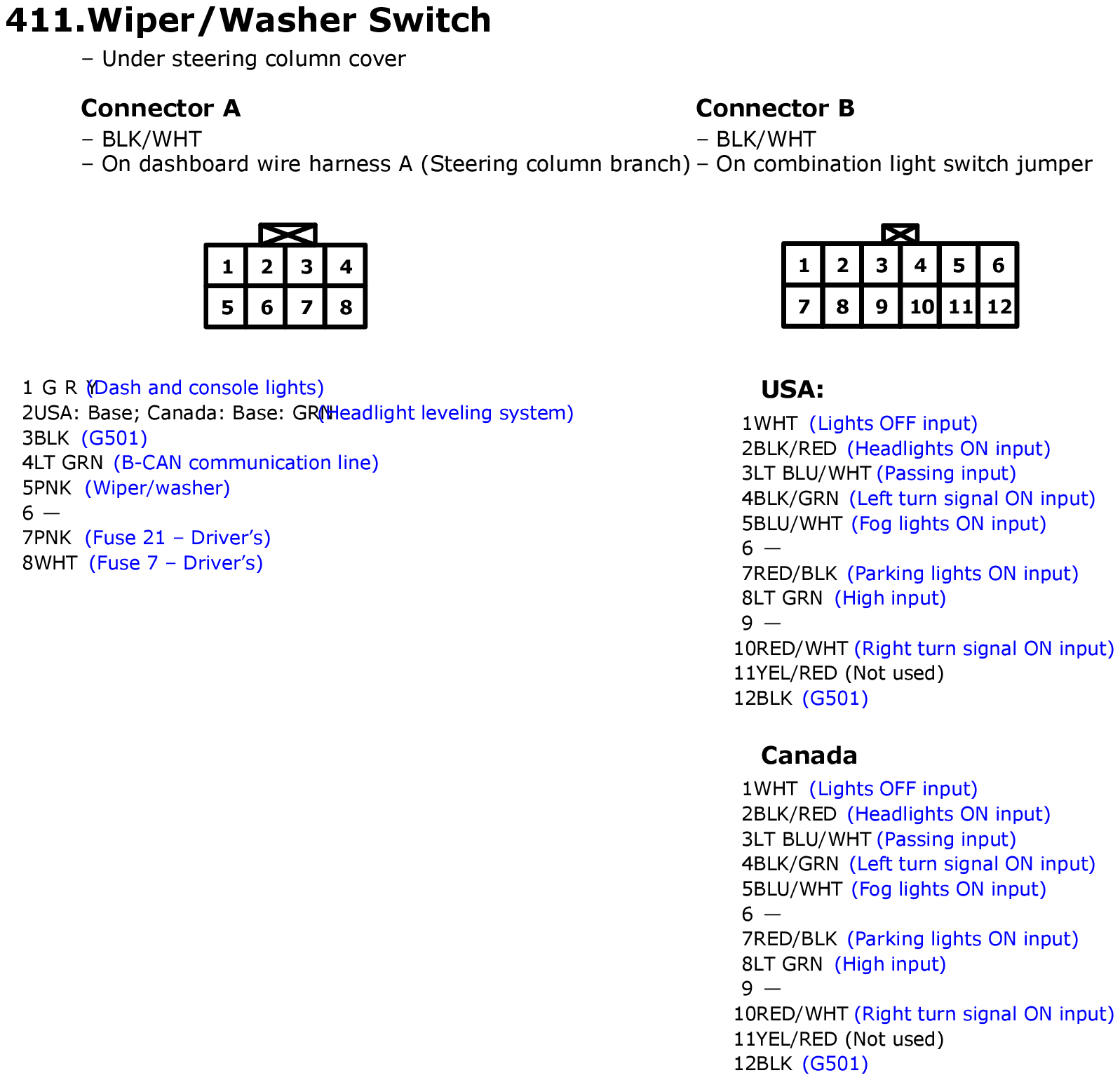

Fig 1: Wiper/Washer Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

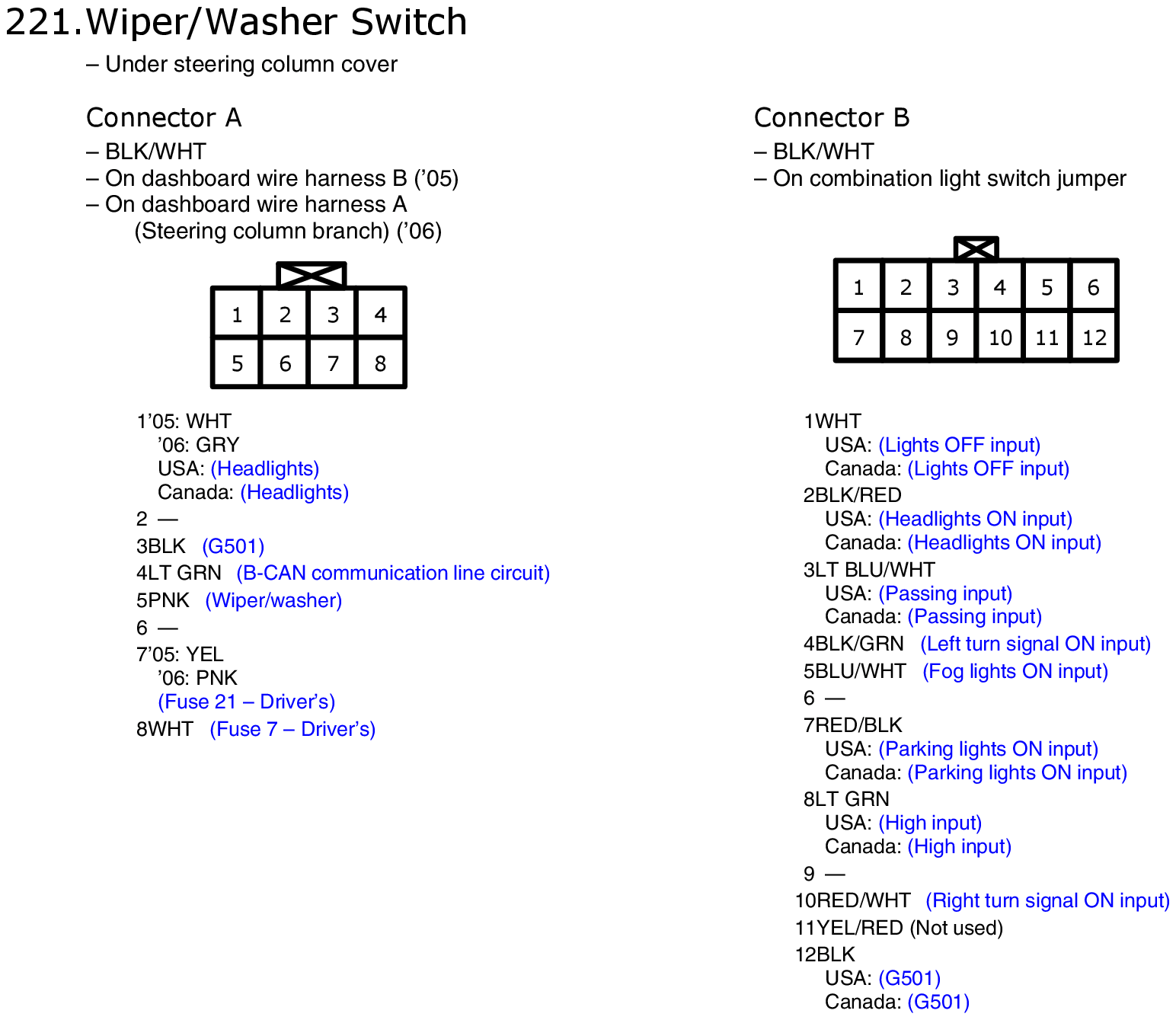

Fig 1: Wiper/Washer Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 1: Wiper/Washer Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
