Power Steering System & Electronic Power Steering System
›
Electronically Controlled Power Steering System
›
System Description
›
Circuit Diagram
Circuit Diagram

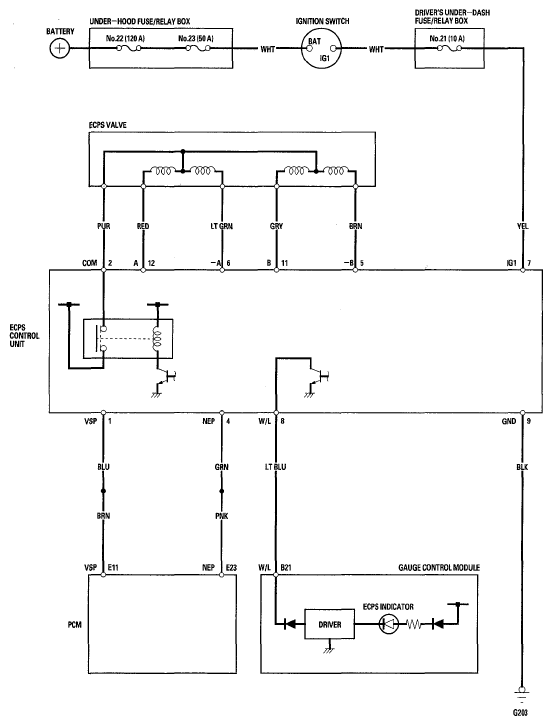

Fig 1: Electronically Controlled Power Steering System - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
