A/T Interlock System
›
Circuit Diagram
›
'05 Model
'05 Model

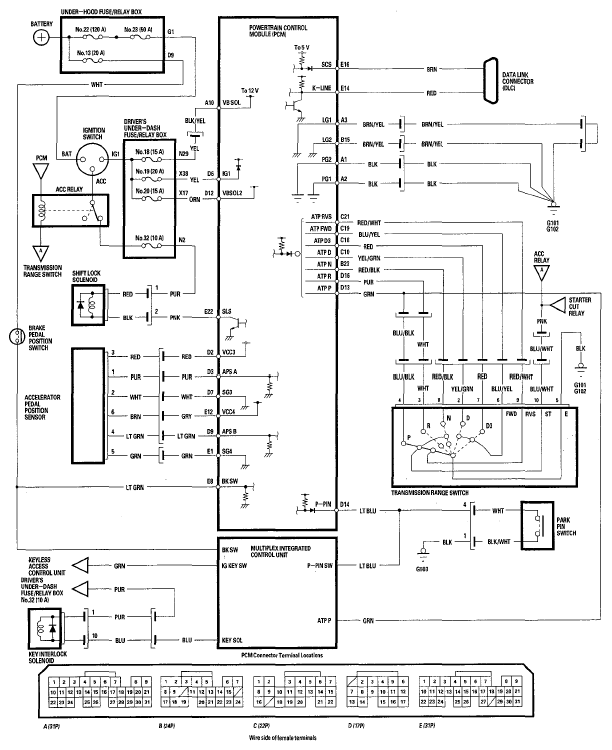

Fig 1: A/T Interlock System (05 Model) - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
