Regulator Valve Body ('05 Model)

The regulator valve body is located on the main valve body. The regulator valve body contains the regulator valve, the lock-up control valve, the servo valve, and the 3rd accumulator.

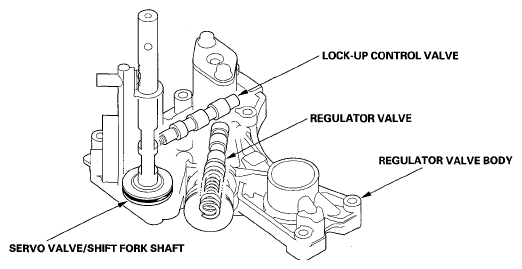

Fig 1: Identifying Regulator Valve Body Components (05 Model)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
