Acura
›
2007
›
TL Base
›
Repair and Diagnosis
›
Accessories & Equipment
›
Cruise Control Systems
›
Circuit Diagram
Circuit Diagram

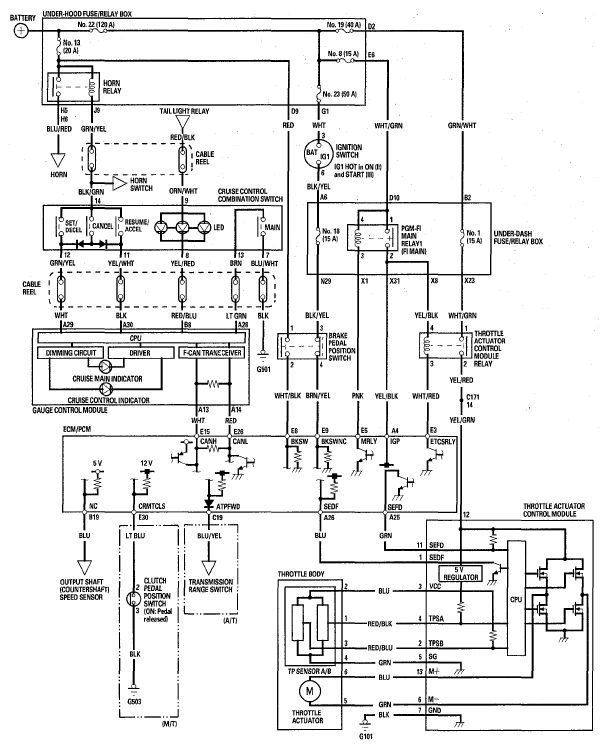

Fig 1: Cruise Control System - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
