Repair and Diagnosis
›
Accessories & Equipment
›
Entertainment Systems
›
HANDSFREELINK System
›
Circuit Diagram
Circuit Diagram

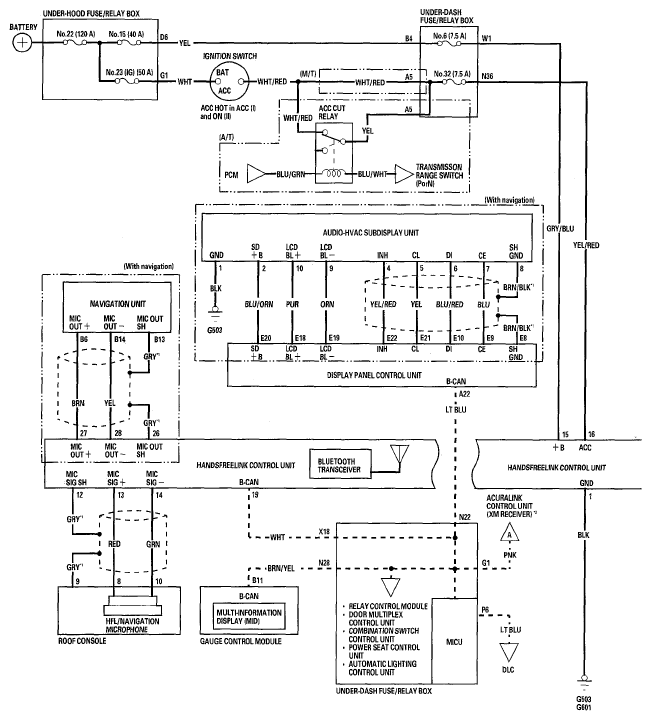

Fig 1: HandsFreeLink System Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

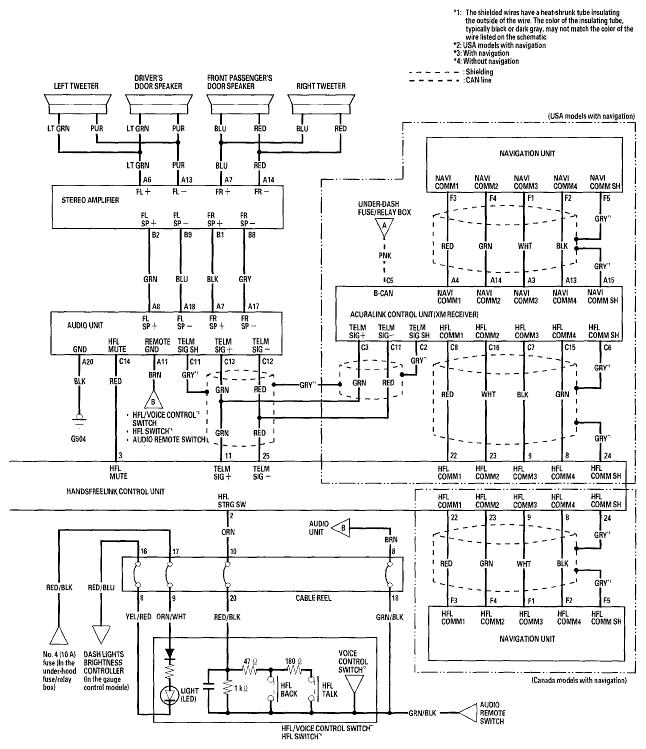

Fig 2: HandsFreeLink System Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
