Home › Acura › 2007 › TL Base › Repair and Diagnosis › Brakes › Traction Control › VSA (Vehicle Stability Assist) System › Component Location Index

Component Location Index

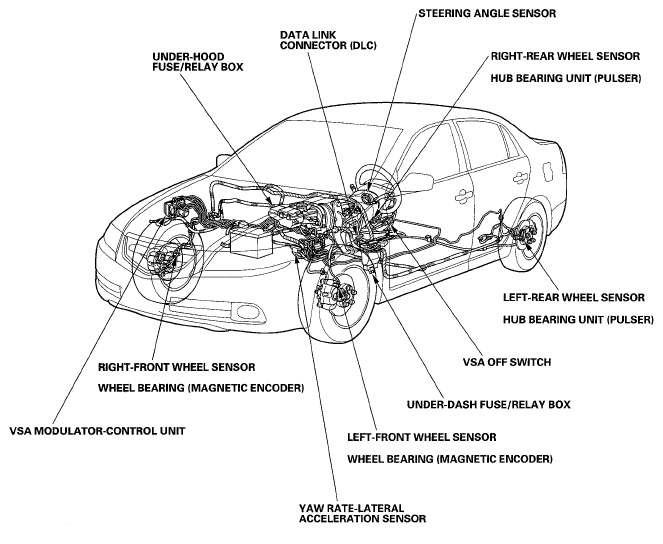

Fig 1: Identifying VSA System Components Location
G05461877Courtesy of AMERICAN HONDA MOTOR CO., INC.
