Steering Angle Sensor Replacement

NOTE: Do not damage or drop the combination switch as the steering angle sensor is sensitive to shock and vibration.

Remove the steering wheel (see STEERING WHEEL REMOVAL ).
Remove the steering column covers and the cable reel (see CABLE REEL REPLACEMENT ).
Remove the combination switch assembly (see STEERING COLUMN REMOVAL AND INSTALLATION ).

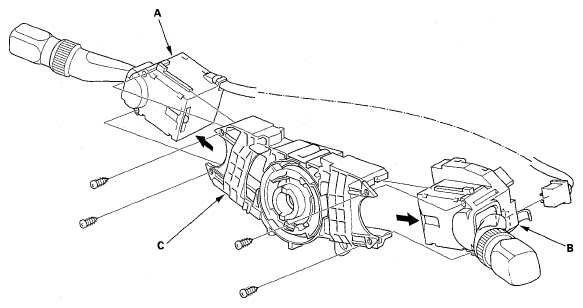

Remove the combination light switch (A) and the wiper/washer switch (B).

Fig 1: Removing Combination Light Switch And Wiper/Washer Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Replace the combination switch (C).
Install the combination switch in the reverse order of removal.
NOTE:
- Do not remove the steering angle sensor from the combination switch body.
- When installing the cable reel, set the turn signal cancelling sleeve position (see INSTALLATION ).
