Wheel Sensor Replacement: Front

Make sure the ignition switch is OFF.
Disconnect the wheel sensor connector (A).

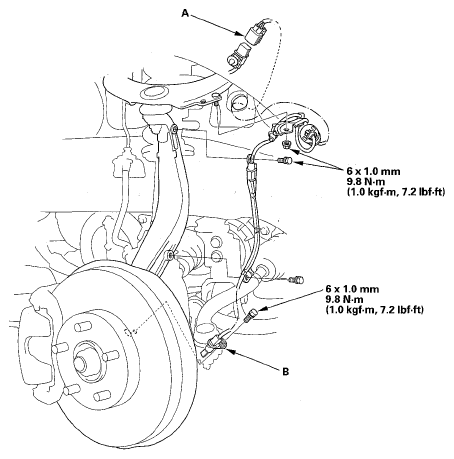

Fig 1: Front Wheel Sensor And Front Wheel Sensor Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts, the nut, and the wheel sensor (B).
Install the wheel sensor in the reverse order of removal, and note these items:
- Install the sensor carefully to avoid twisting the wires.
- If the wheel sensor comes in contact with the wheel bearing, it is faulty.
Start the engine, and check that the ABS and the VSA indicators go off.
Test-drive the vehicle, and check that the ABS and the VSA indicators do not come on.
