Right Brake Light/Taillight Connector End View
Right Brake Light/Taillight Connector End View

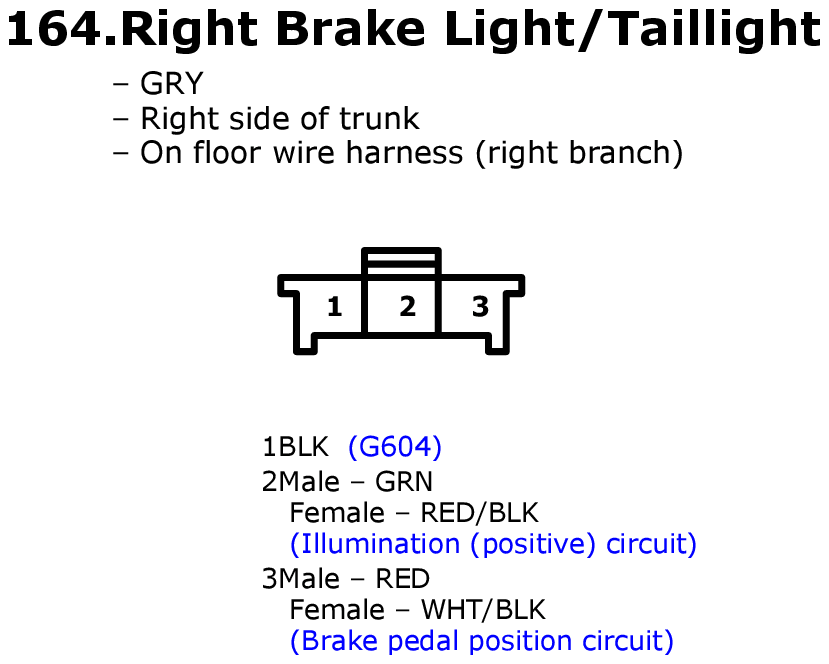

Fig 1: Right Brake Light/Taillight Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
