Starting System
›
Circuit Diagram
›
A/T model
A/T model

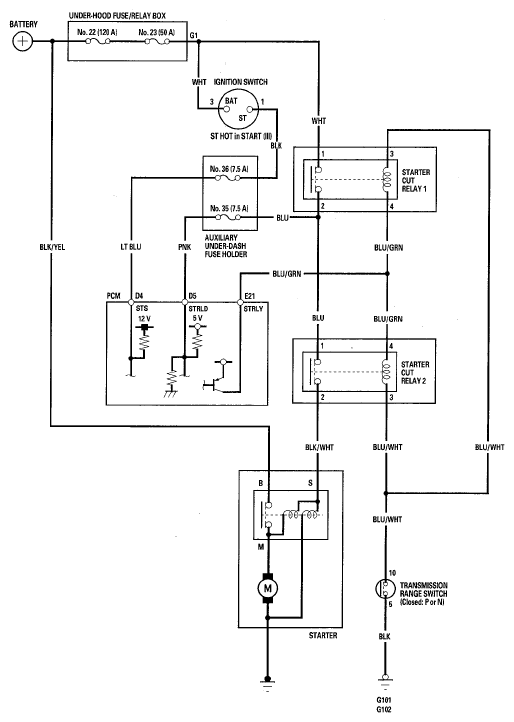

Fig 1: Starting System - Circuit Diagram (A/T Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
