Right DRL Connector End View
Right DRL Connector End View

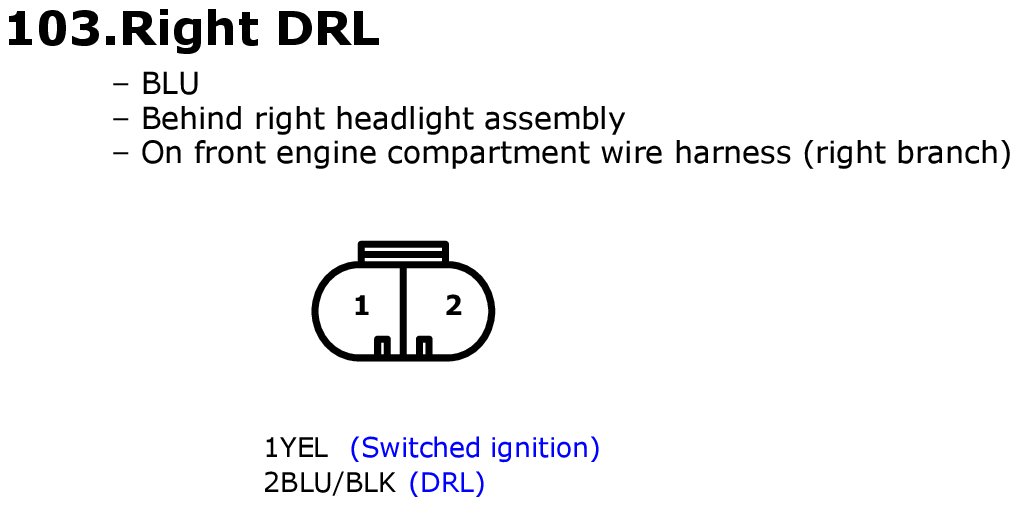

Fig 1: Right DRL Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
