TP Sensor/Throttle Actuator Connector End View
TP Sensor/Throttle Actuator Connector End View

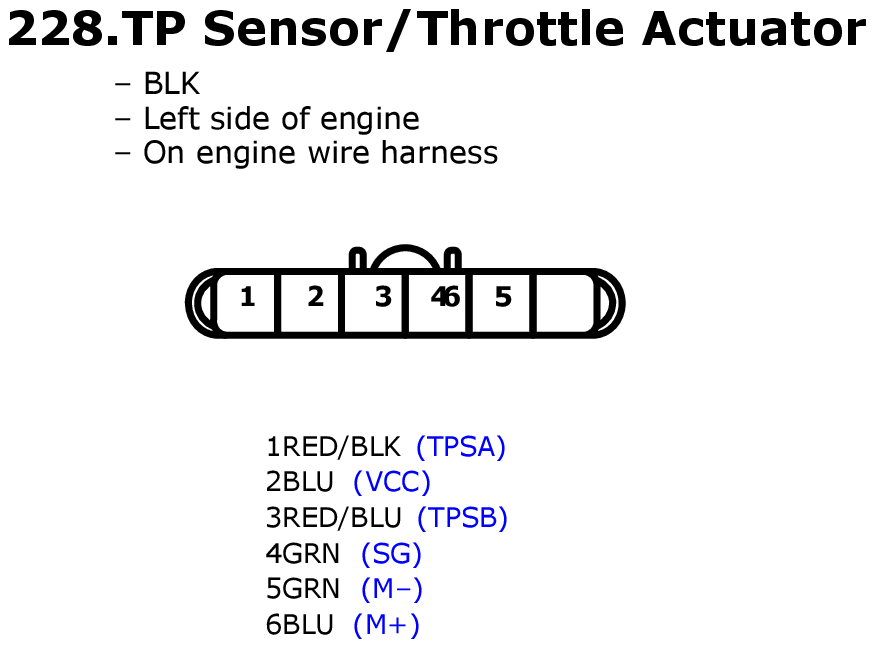

Fig 1: TP Sensor/Throttle Actuator Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
