Drain Bolt Installation
Drain Bolt Installation
NOTE:
When installing the drain bolts, always use new washers.

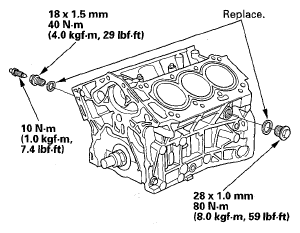

Fig 1: Drain Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
