DTC P0627: Fuel Pump Control Module System Malfunction (J35A8)
›
Notes
DTC P0627: Fuel Pump Control Module System Malfunction (J35A8): Notes

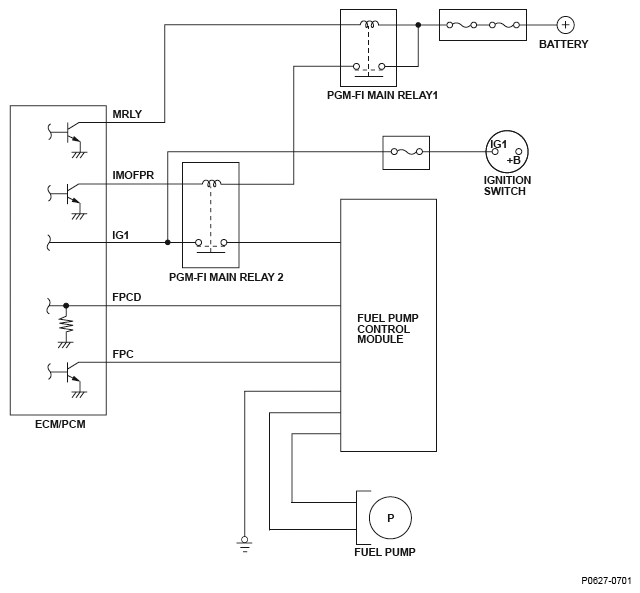

Fig 1: Fuel Pump Control Module System - Circuit Diagram (J35A8)
