PGM-FI System
›
Secondary HO2S Replacement
›
Rear Bank(Bank 1}
Rear Bank(Bank 1}
Disconnect the rear secondary HO2S 4P connector (A), then remove the rear secondary HO2S (B).

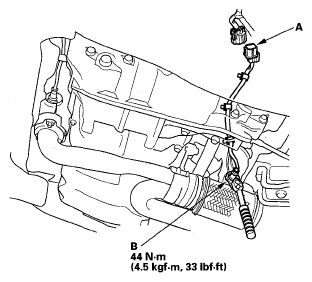

Fig 1: Removing Front Secondary HO2S With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
