Active Noise Control Unit Connector End View
Active Noise Control Unit Connector End View

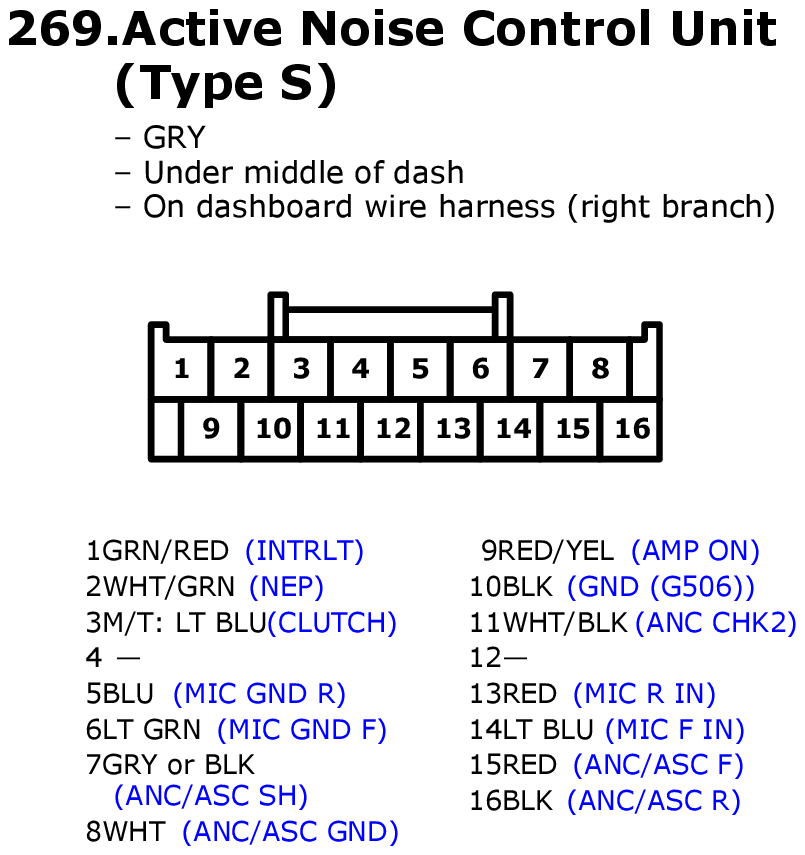

Fig 1: Active Noise Control Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
