Audio-HVAC Sub Display Unit Connector End View
Audio-HVAC Sub Display Unit Connector End View

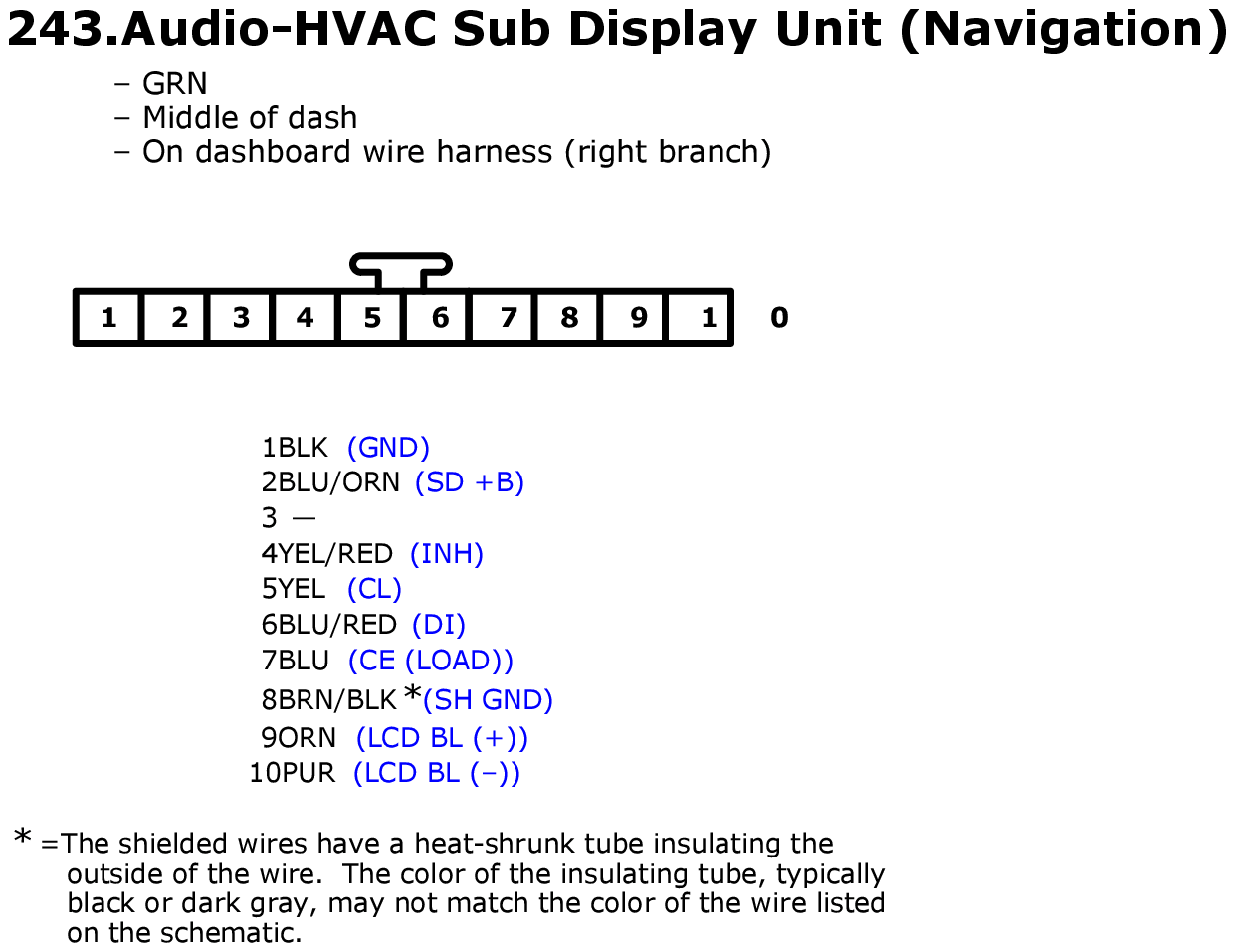

Fig 1: Audio-HVAC Sub Display Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
