Dash Lights Brightness Controller Connector End View
Dash Lights Brightness Controller Connector End View

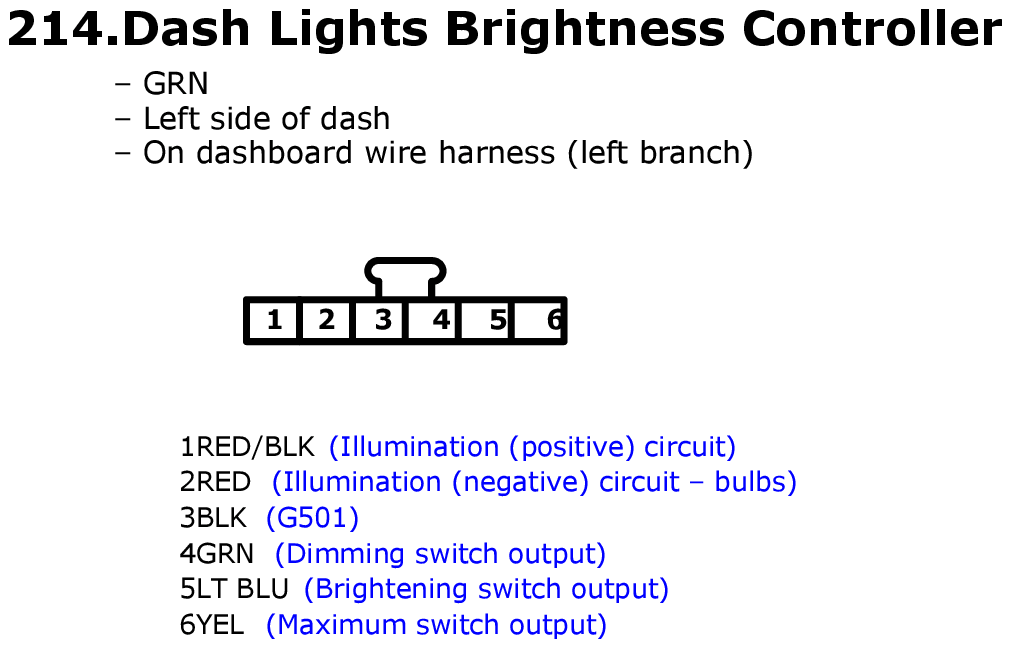

Fig 1: Dash Lights Brightness Controller Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
