Driver's Air Mix Control Motor Connector End View
Driver's Air Mix Control Motor Connector End View

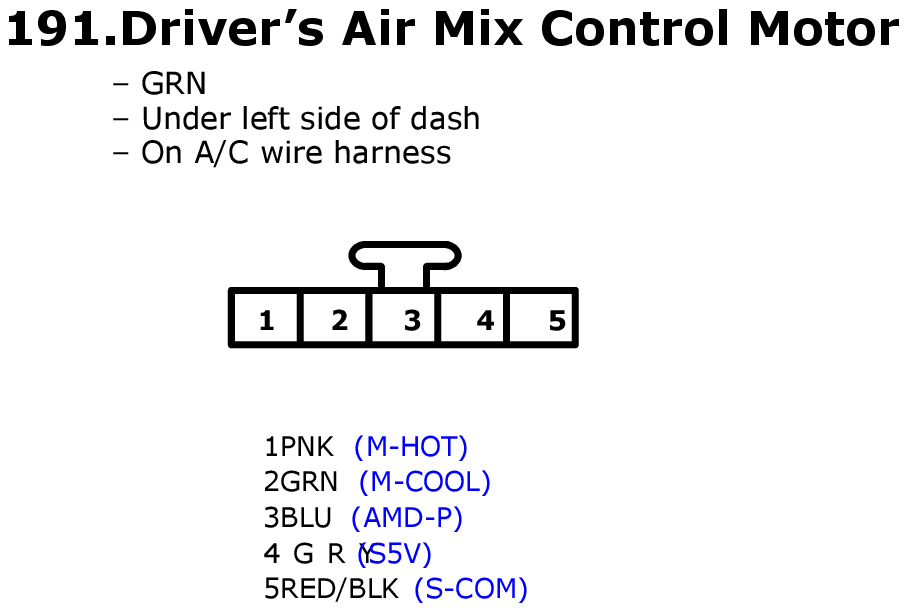

Fig 1: Driver's Air Mix Control Motor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
