ECM/PCM Connector End View
ECM/PCM Connector End View

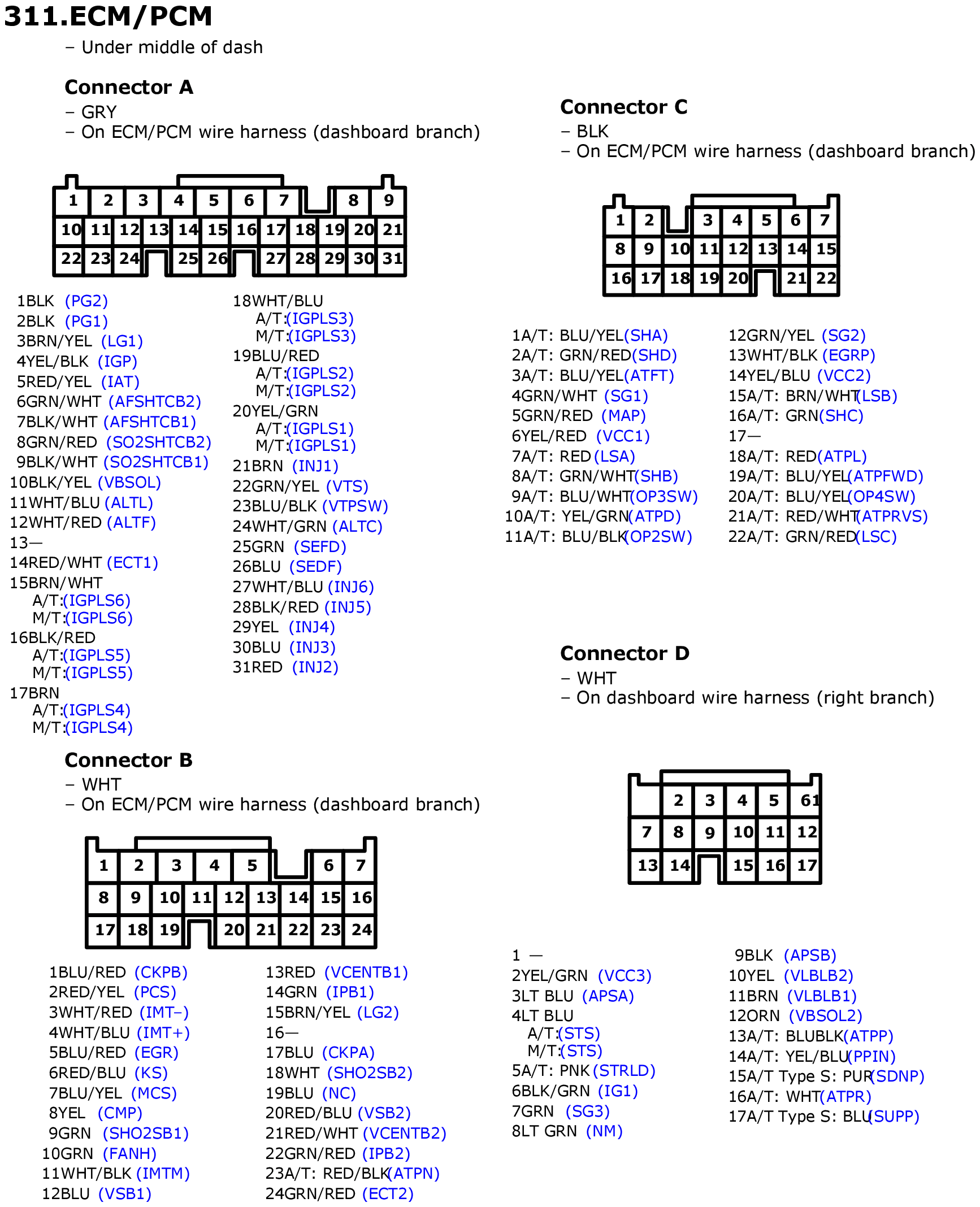

Fig 1: ECM/PCM Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
