IMT Actuator Connector End View
IMT Actuator Connector End View

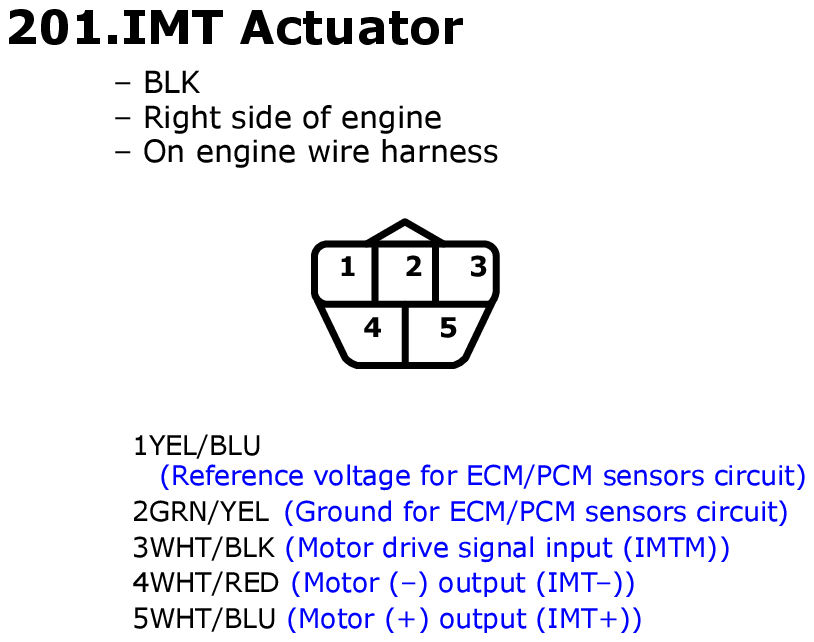

Fig 1: IMT Actuator Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
