Imoes Unit Connector End View
Imoes Unit Connector End View

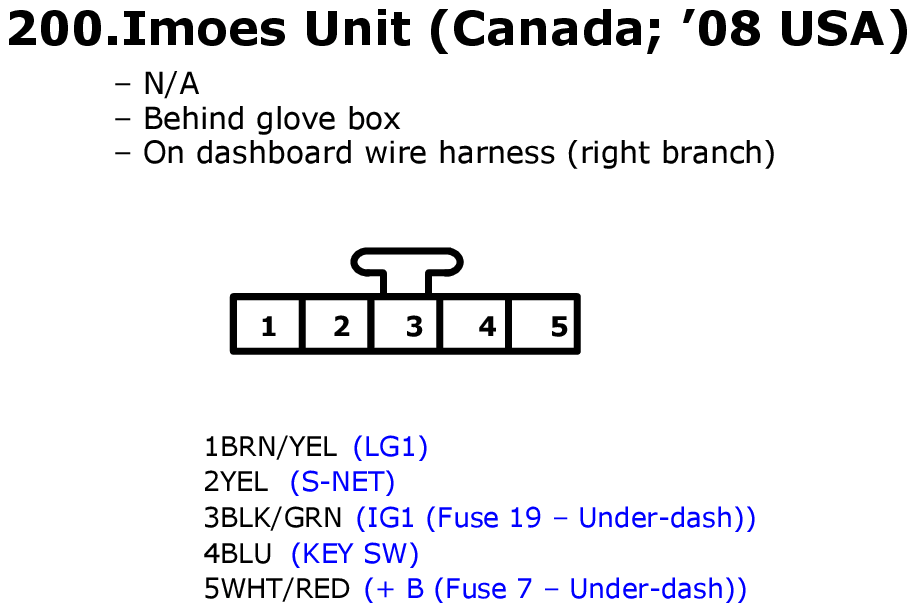

Fig 1: Imoes Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
