Injectors Connector End View
Injectors Connector End View

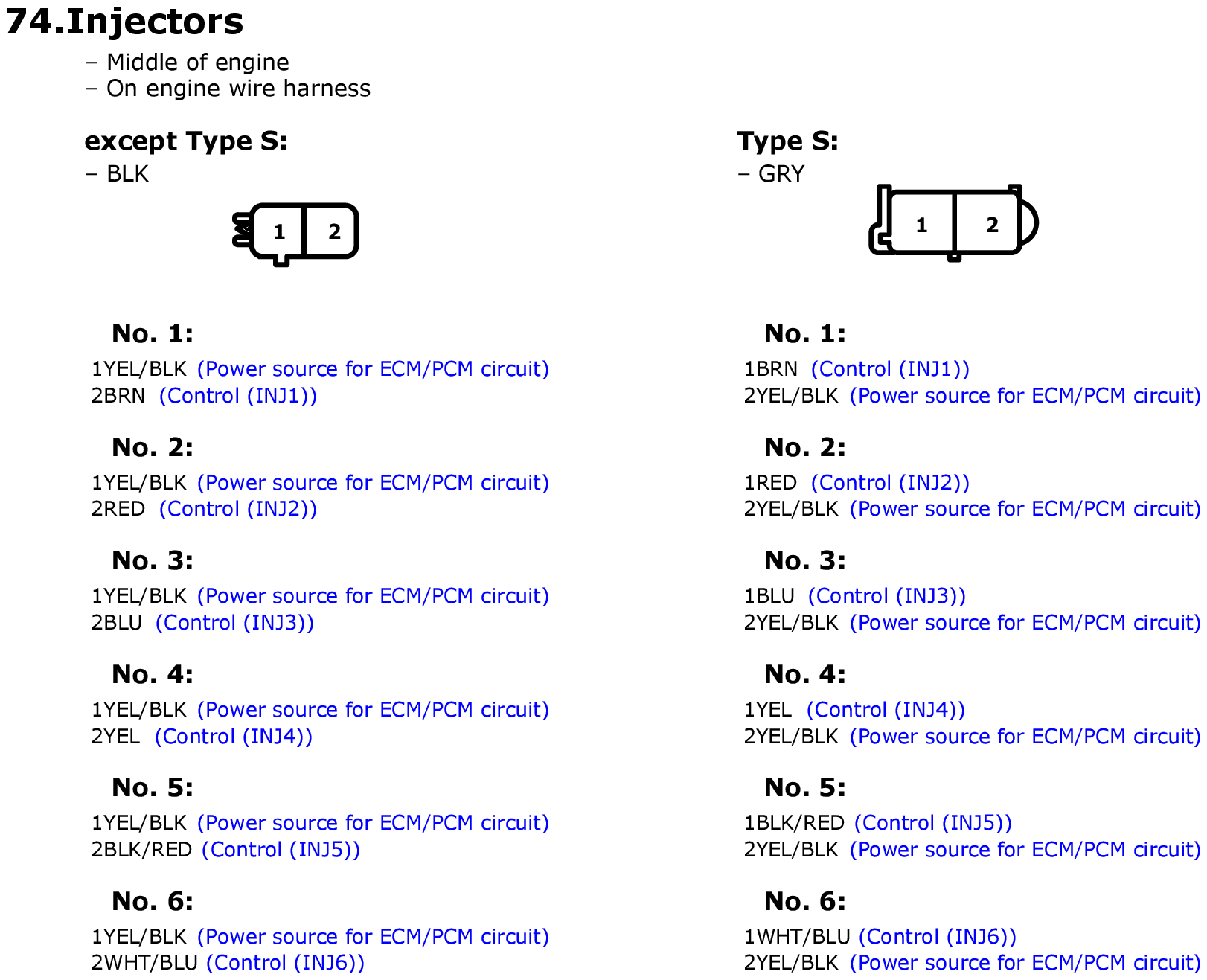

Fig 1: Injectors Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
