Left Back-up Light Connector End View
Left Back-up Light Connector End View

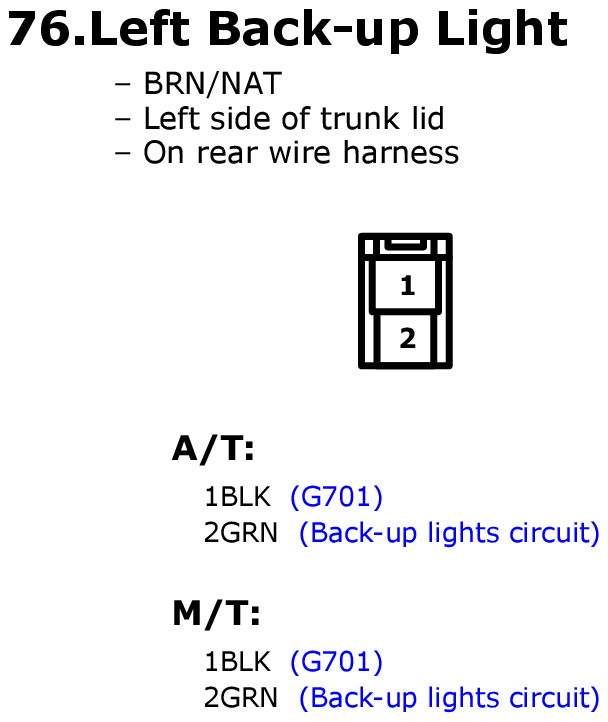

Fig 1: Left Back-up Light Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
