Left Front Turn Signal/Parking/Side Marker Lights Connector End View
Left Front Turn Signal/Parking/Side Marker Lights Connector End View

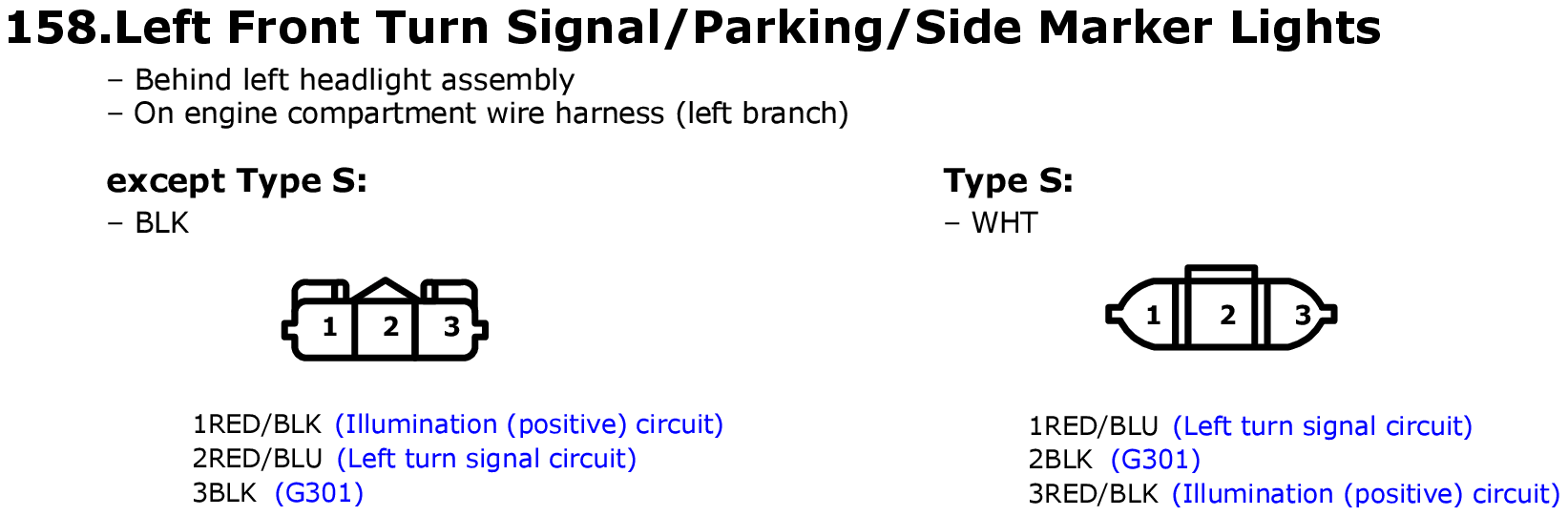

Fig 1: Left Front Turn Signal/Parking/Side Marker Lights Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
