Lumbar Support Switch Connector End View
Lumbar Support Switch Connector End View

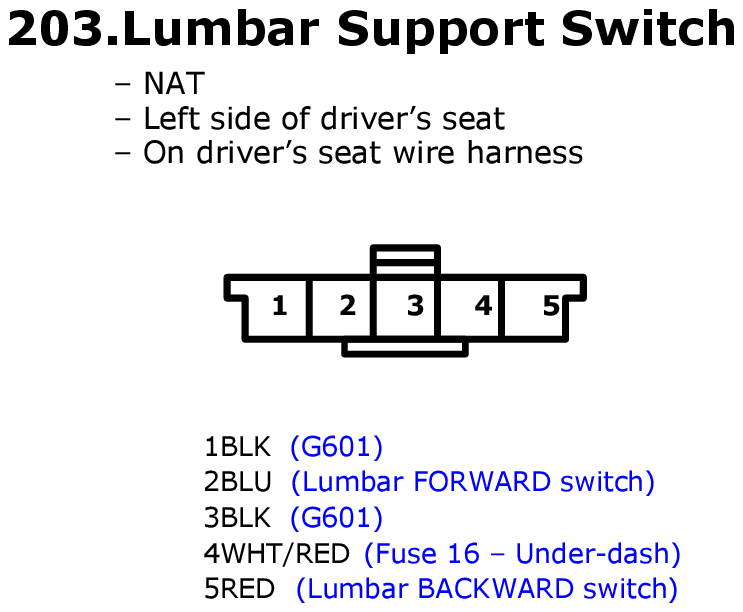

Fig 1: Lumbar Support Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
