Moonroof Switch Connector End View
Moonroof Switch Connector End View

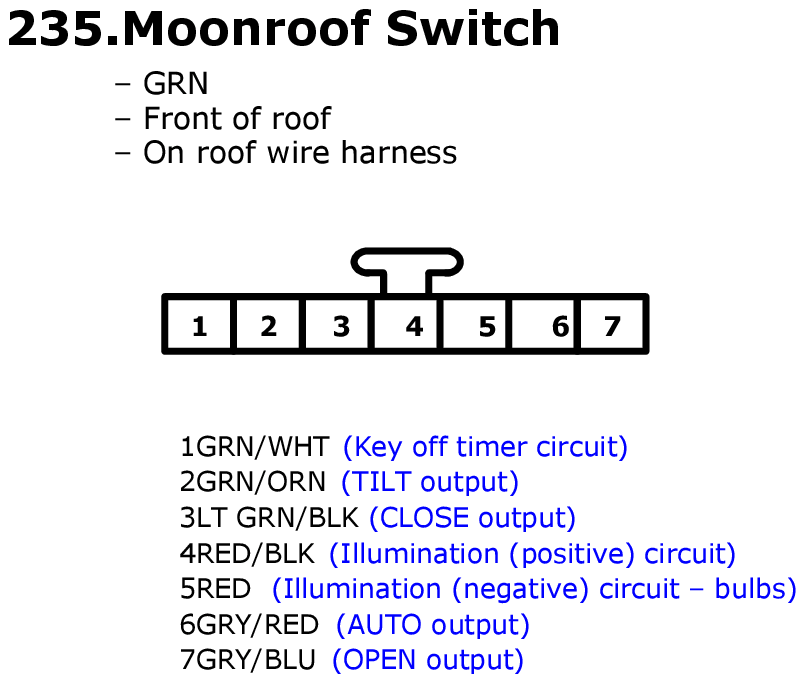

Fig 1: Moonroof Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
