Outside Air Temperature Sensor Connector End View
Outside Air Temperature Sensor Connector End View

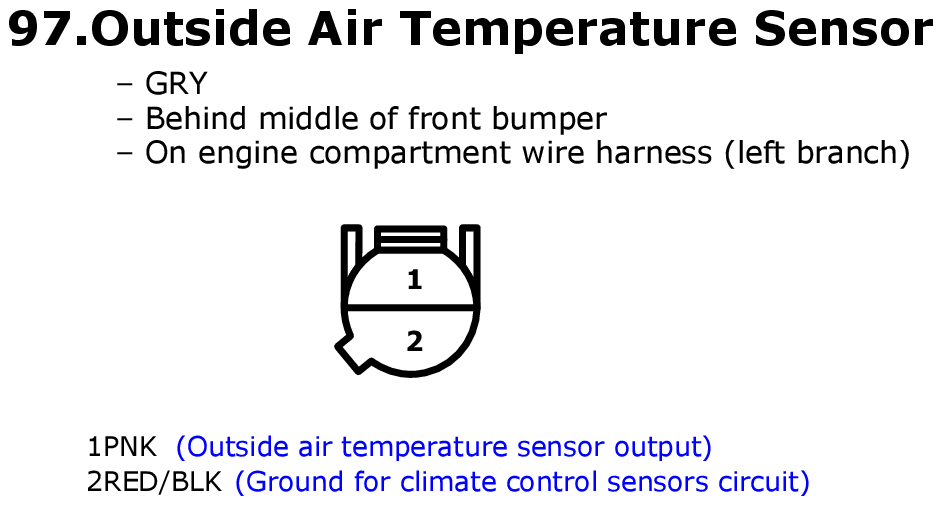

Fig 1: Outside Air Temperature Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
