Right Middle Back-up Sensor Connector End View
Right Middle Back-up Sensor Connector End View

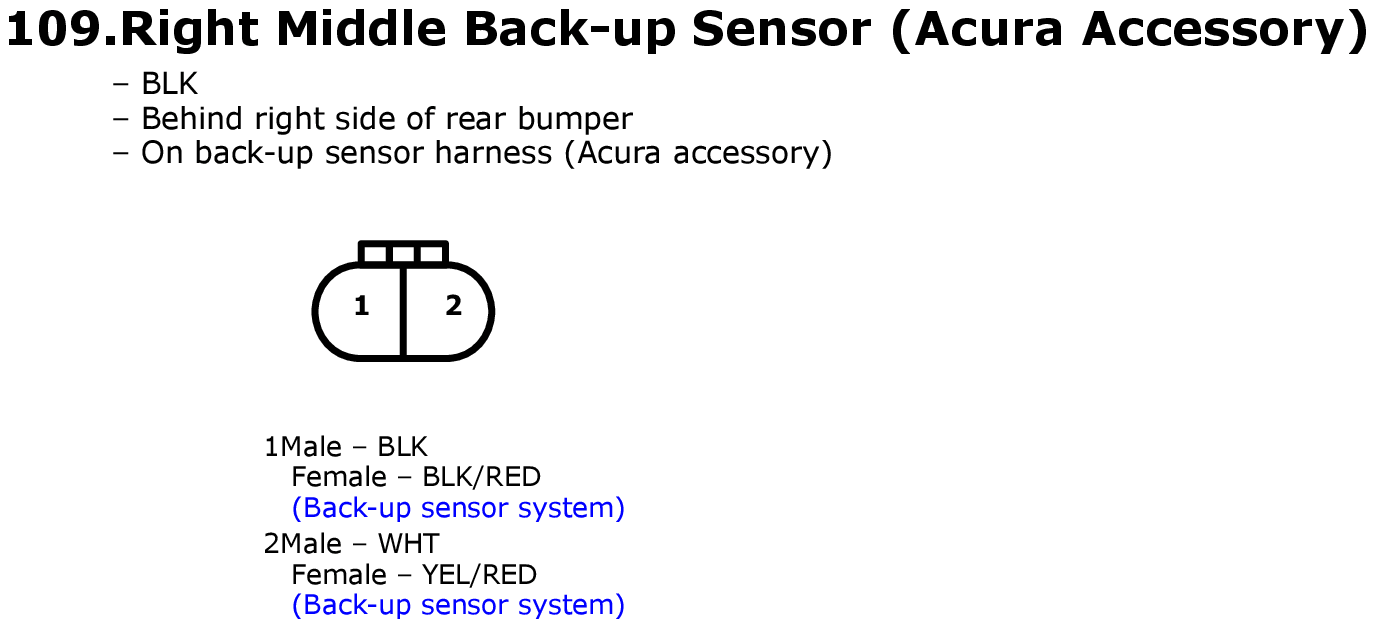

Fig 1: Right Middle Back-up Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
