Seat Heater Relay and Throttle Actuator Control Module Relay Connector End View
Seat Heater Relay and Throttle Actuator Control Module Relay Connector End View

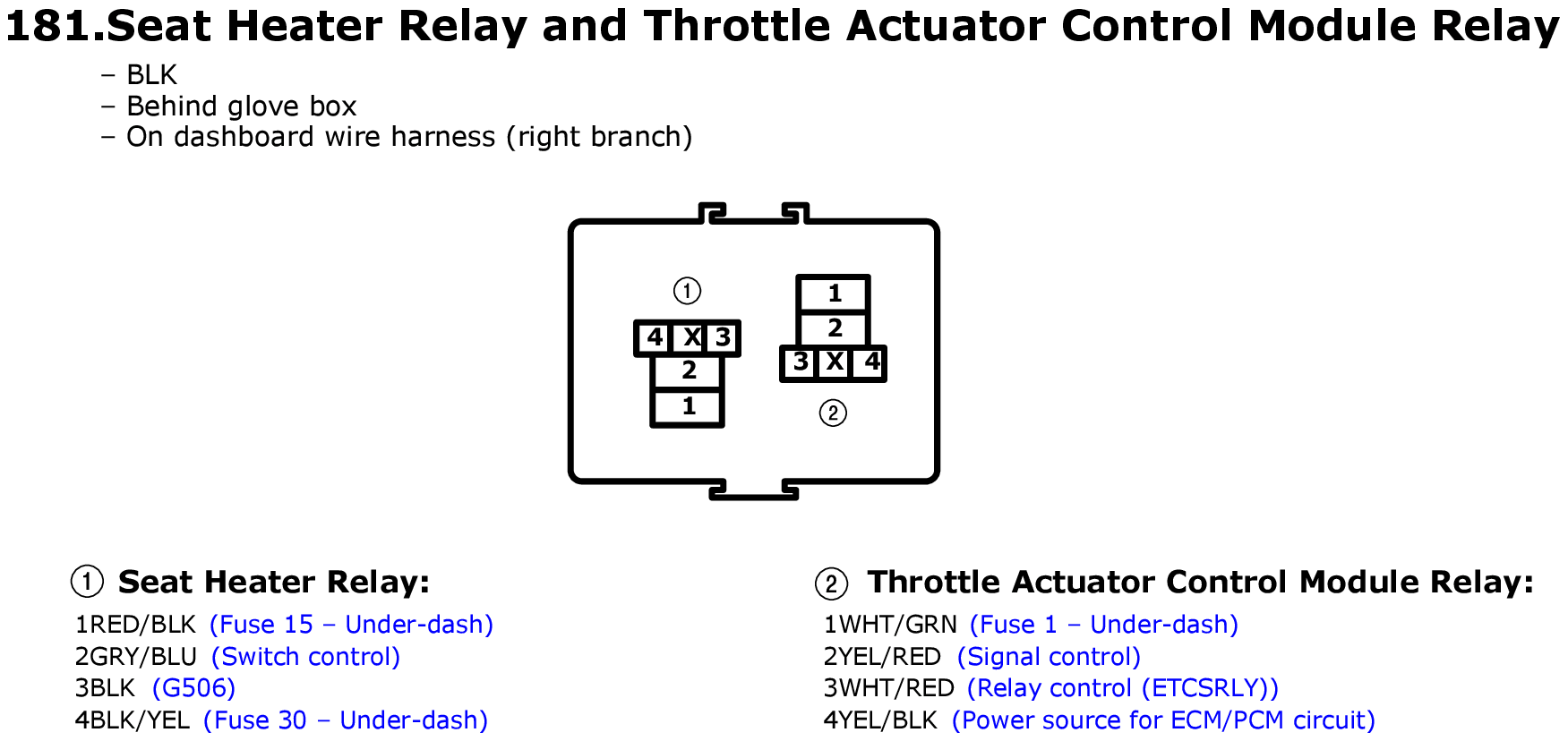

Fig 1: Seat Heater Relay and Throttle Actuator Control Module Relay Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
