Stereo Amplifier Connector End View
Stereo Amplifier Connector End View

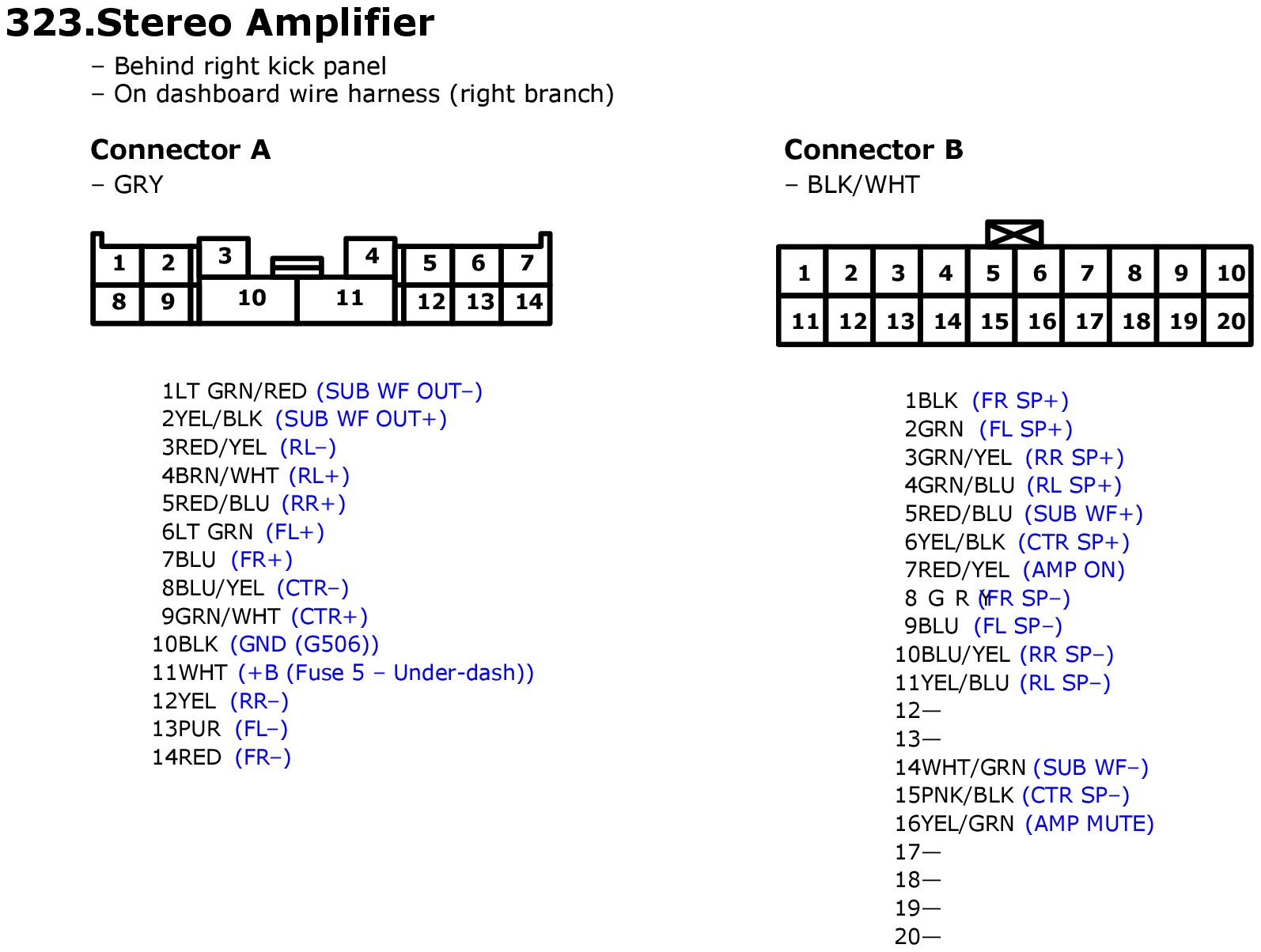

Fig 1: Stereo Amplifier Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
