VSA OFF Switch Connector End View
VSA OFF Switch Connector End View

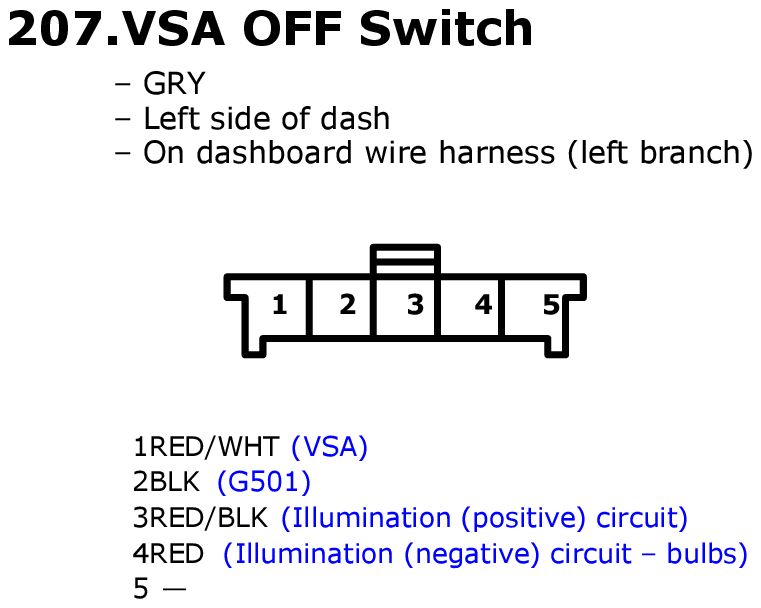

Fig 1: VSA OFF Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
