Yaw Rate-Lateral Acceleration Sensor Connector End View
Yaw Rate-Lateral Acceleration Sensor Connector End View

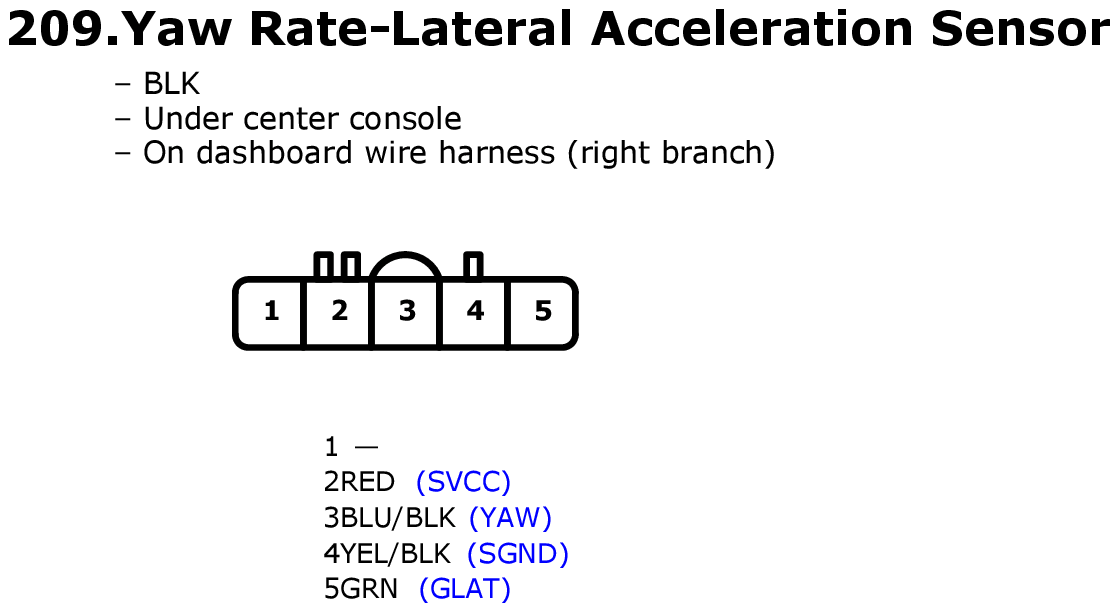

Fig 1: Yaw Rate-Lateral Acceleration Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
